627W11W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLUG 11P PNL MNT SLDR

Part	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Voltage Rating	Contact Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Connector Style	Features	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Contact Type	Current Rating (Amps)	Flange Feature	Contact Finish	Shell Material, Finish	Ingress Protection	Connector Type	Termination	Mounting Type	Contact Finish Thickness	Current Rating (Amps)	Flange Feature
EDAC Inc. 627W11W1624-1N5	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Board Lock Grounding Indents Shielded	2 (DA A) - 11C1 11W1	30 Áin	0.76 Ám	2	Signal and Power	10A 5A	Board Side (4-40)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins	Solder	Panel Mount Through Hole
EDAC Inc. 627W11W1624-1NA	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Grounding Indents Shielded	2 (DA A) - 11C1 11W1	30 Áin	0.76 Ám	2	Signal and Power	10A 5A	Housing/Shell (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins	Solder	Panel Mount Through Hole
EDAC Inc. 627W11W1222-4NA	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Grounding Indents Shielded	2 (DA A) - 11C1 11W1			2	Signal and Power		Housing/Shell (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins		Panel Mount Through Hole	Flash	5 A 40 A

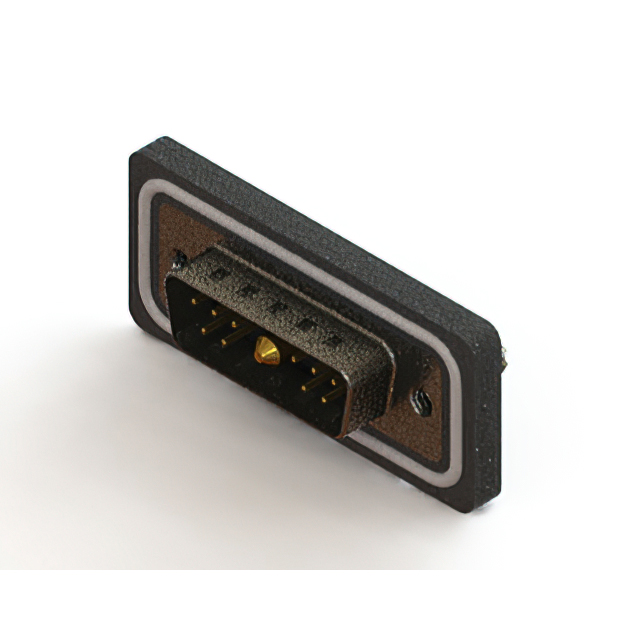

EDAC Inc. 627W11W1624-2ND	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Board Lock Grounding Indents Shielded	2 (DA A) - 11C1 11W1	30 Áin	0.76 Ám	2	Signal and Power	20A 5A	Board Side (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins	Solder	Panel Mount Through Hole
EDAC Inc. 627W11W1324-3ND	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Board Lock Grounding Indents Shielded	2 (DA A) - 11C1 11W1	15 µin	0.38 µm	2	Signal and Power		Board Side (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins	Solder	Panel Mount Through Hole		5 A 30 A
EDAC Inc. 627W11W1122-1N2	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Grounding Indents Shielded	2 (DA A) - 11C1 11W1	5 µin	0.127 µm	2	Signal and Power	10A 5A	Housing/Shell	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins		Panel Mount Through Hole			4-40
EDAC Inc. 627W11W1624-4ND	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Board Lock Grounding Indents Shielded	2 (DA A) - 11C1 11W1	30 Áin	0.76 Ám	2	Signal and Power		Board Side (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins	Solder	Panel Mount Through Hole		5 A 40 A

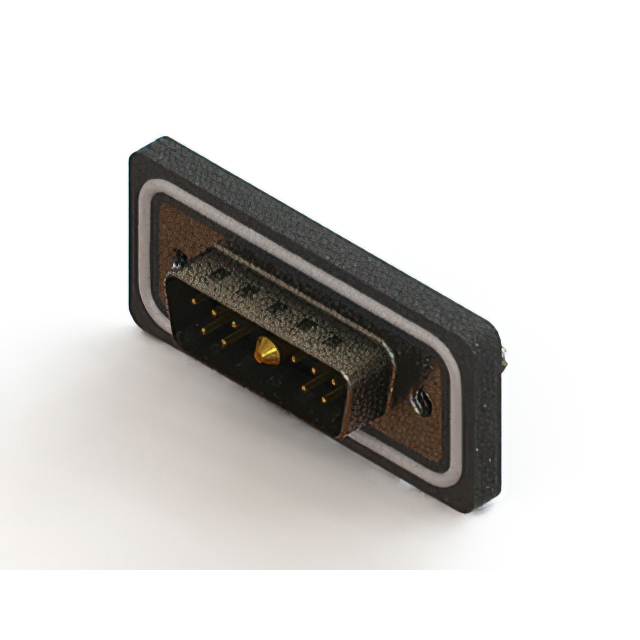

EDAC Inc. 627W11W1324-2ND	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Board Lock Grounding Indents Shielded	2 (DA A) - 11C1 11W1	15 µin	0.38 µm	2	Signal and Power	20A 5A	Board Side (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins	Solder	Panel Mount Through Hole

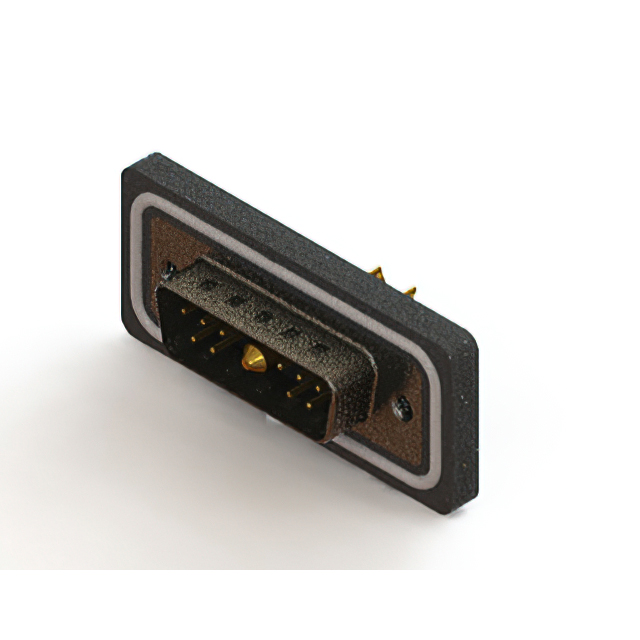

EDAC Inc. 627W11W1122-4NA	Polybutylene Terephthalate (PBT) Glass Filled	85 °C	-25 °C	Black	125 VDC	Copper Alloy	UL94 V-0	10	1	Combo D-Sub	Grounding Indents Shielded	2 (DA A) - 11C1 11W1	5 µin	0.127 µm	2	Signal and Power		Housing/Shell (M3)	Gold	Nickel Plated Steel	IP67 - Dust Tight Waterproof	Plug Male Pins		Panel Mount Through Hole		5 A 40 A
