ERM8-010 Series

Manufacturer: Samtec Inc.

Catalog

CONN HDR 20POS R/A SMD GOLD

PartPitch [x]Pitch [x]Contact FinishNumber of RowsNumber of PositionsHeight Above BoardHeight Above BoardMounting TypeFeaturesConnector TypeContact Finish ThicknessContact Finish ThicknessMated Stacking Heights
Samtec Inc.
ERM8-010-01-S-D-RA-L-K-TR
0.8 mm
0.031 in
Gold
2
20
6.25 mm
0.246 in
Surface Mount
Right Angle
Board Guide
Latches
Mounting Flange
Pick and Place
Header
Center Strip Contacts
0.76 Ám
30 Áin

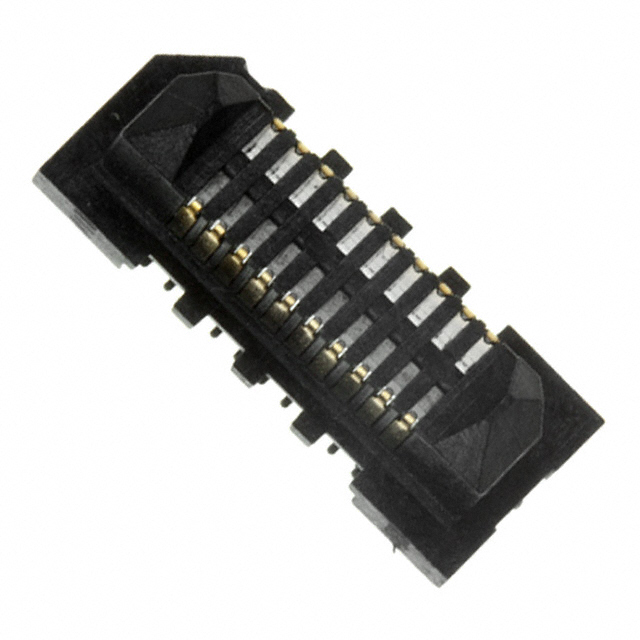

ERM8-010-02.0-S-DV
Samtec Inc.
ERM8-010-02.0-S-DV
0.8 mm
0.031 in
Gold
2
20
5.97 mm
0.235 in
Surface Mount
Board Guide
Header
Center Strip Contacts
0.76 Ám
30 Áin
7 mm
9 mm
12 mm
Samtec Inc.
ERM8-010-05.0-S-DV-EGP-K-TR
0.8 mm
0.031 in
Gold
2
20
8.91 mm
0.351 in
Surface Mount
Board Guide
Mating Guide
Pick and Place
Header
Center Strip Contacts
0.76 Ám
30 Áin
10 mm
12 mm
15 mm
Samtec-ERM8-010-01-L-D-RA-L-K-TR Connector Headers and PCB Receptacles Conn Micro High Speed Terminal Strip HDR 20 POS 0.8mm Solder RA Side Entry SMD T/R
Samtec Inc.
ERM8-010-01-L-D-RA-L-K-TR
0.8 mm
0.031 in
Gold
2
20
6.25 mm
0.246 in
Surface Mount
Right Angle
Board Guide
Latches
Mounting Flange
Pick and Place
Header
Center Strip Contacts
0.25 Ám
10 Áin

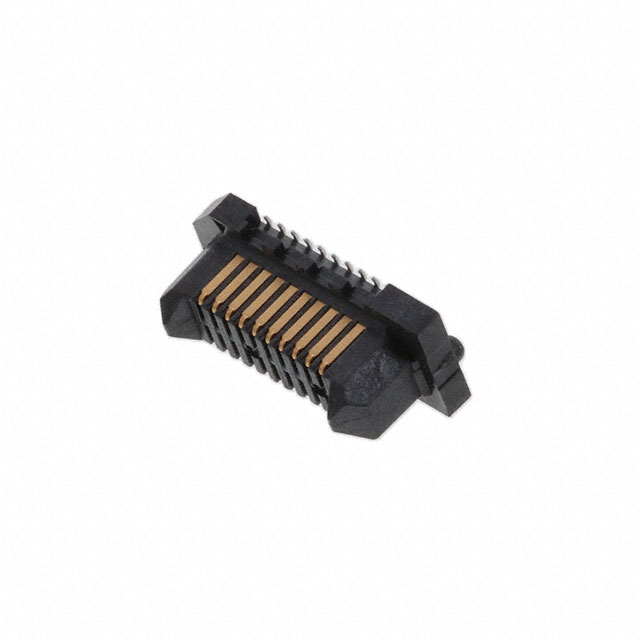

ERM8-010-02.0-L-DV-TR
Samtec Inc.
ERM8-010-02.0-L-DV-K-TR
0.8 mm
0.031 in
Gold
2
20
5.97 mm
0.235 in
Surface Mount
Board Guide
Pick and Place
Header
Center Strip Contacts
0.25 Ám
10 Áin
7 mm
9 mm
12 mm
ERM8 Series
Samtec Inc.
ERM8-010-05.0-S-DV-DS-L-TR
0.8 mm
0.031 in
Gold
2
20
8.91 mm
0.351 in
Surface Mount
Board Guide
Latches
Differential Pair Array
Male
0.76 Ám
30 Áin
10 mm
12 mm
15 mm

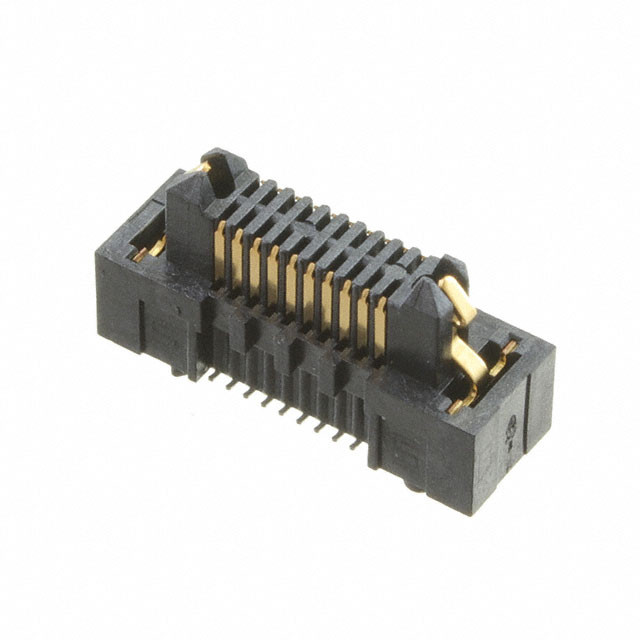

ERM8-010-05.0-L-DV-L-TR
Samtec Inc.
ERM8-010-05.0-L-DV-L-TR
0.8 mm
0.031 in
Gold
2
20
8.91 mm
0.351 in
Surface Mount
Board Guide
Latches
Header
Center Strip Contacts
0.25 Ám
10 Áin
10 mm
12 mm
15 mm

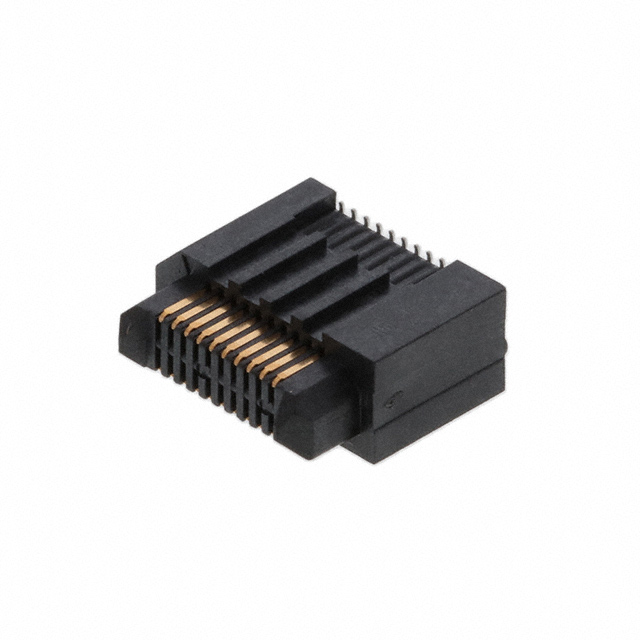

ERM8-010-09.0-L-DV-K-TR
Samtec Inc.
ERM8-010-09.0-L-DV-K-TR
0.8 mm
0.031 in
Gold
2
20
12.91 mm
0.508 in
Surface Mount
Board Guide
Pick and Place
Header
Center Strip Contacts
0.25 Ám
10 Áin
14 mm
16 mm
19 mm
ERM8-010-05.0-S-DV-L-K-TR
Samtec Inc.
ERM8-010-05.0-S-DV-L-K-TR
0.8 mm
0.031 in
Gold
2
20
8.91 mm
0.351 in
Surface Mount
Board Guide
Latches
Pick and Place
Header
Center Strip Contacts
0.76 Ám
30 Áin
10 mm
12 mm
15 mm
Samtec-ERM8-010-01-S-D-EM2-DS-TR Connector Headers and PCB Receptacles Conn Micro High Speed Terminal Strip HDR 20 POS 0.8mm Solder ST Edge Mount T/R
Samtec Inc.
ERM8-010-01-S-D-EM2-DS-TR
0.8 mm
0.031 in
Gold
2
20
Board Edge
Straddle Mount
Differential Pair Array
Male
0.76 Ám
30 Áin
