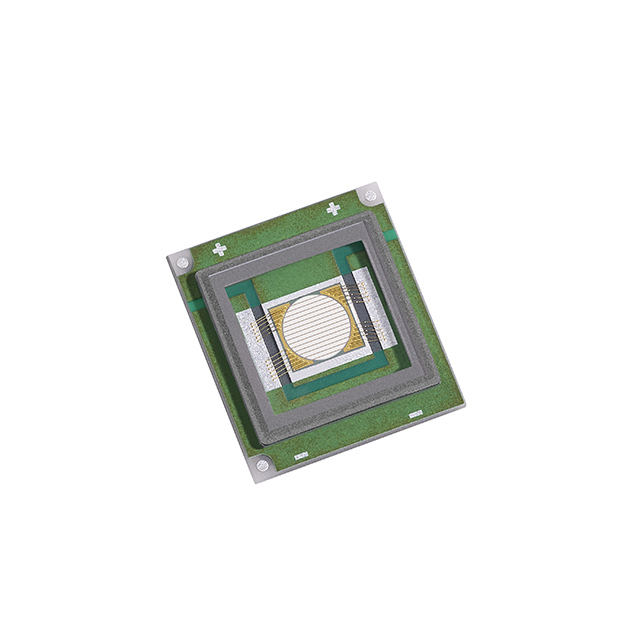

SBT-70 Series

Catalog

LED SBT70 BLUE 445NM SMD

Part	Thermal Resistance of Package	Temperature - Test	Height - Seated (Max)	Height - Seated (Max) [Max]	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Voltage - Forward (Vf) (Typ)	Package / Case	Lumens/Watt @ Current - Test	Mounting Type	Supplier Device Package	Wavelength	Luminous Flux @ Current/Temperature	Current - Max [Max]	Wavelength [Min]	Wavelength [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	CRI (Color Rendering Index)	CCT (K)
Luminus Devices Inc. SBT-70-B-F75-KF300	0.64 °C/W	25 °C	1.71 mm	0.067 in	Blue	0.433 in	0.394 in	10 mm	11 mm	10.5 A	3.8 V	0404 (1010 Metric)	5 lm/W	Surface Mount	SMD	445 nm	200 lm	10.5 A
Luminus Devices Inc. SBT-70-B-F75-KF301	0.64 °C/W	25 °C	1.71 mm	0.067 in	Blue	0.433 in	0.394 in	10 mm	11 mm	10.5 A	3.8 V	0404 (1010 Metric)	5 lm/W	Surface Mount	SMD	445 nm	200 lm	10.5 A	440 nm	450 nm
Luminus Devices Inc. SBT-70-G-F75-JK200	0.64 °C/W	25 °C	1.71 mm	0.067 in	Green	0.433 in	0.394 in	10 mm	11 mm	10.5 A	4.5 V	0404 (1010 Metric)	44 lm/W	Surface Mount	SMD	530 nm	2100 lm	14 A	520 nm	540 nm
Luminus Devices Inc. SBT-70-WCS-F75-NB123	0.7 °C/W		1.71 mm	0.067 in	Cool White	0.433 in	0.394 in	10 mm	11 mm	10.5 A	3.7 V	2-SMD No Lead Exposed Pad	46 lm/W	Surface Mount				10.5 A			1770 lm	1830 lm	1710 lm	75	7770 K
Luminus Devices Inc. SBT-70-G-F75-JM202	0.64 °C/W	25 °C	1.71 mm	0.067 in	Green	0.433 in	0.394 in	10 mm	11 mm	10.5 A	4.5 V	0404 (1010 Metric)	44 lm/W	Surface Mount	SMD	535 nm	2100 lm	14 A
