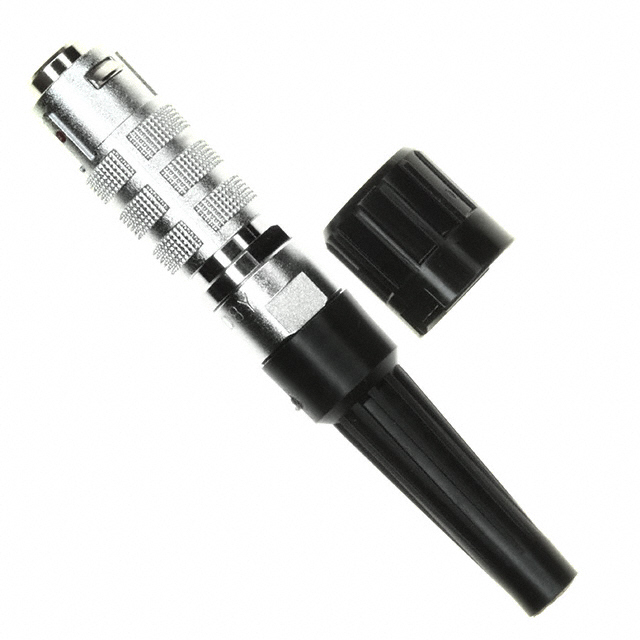

JB5DS03M Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PLUG MALE 3POS SOLDER CUP
| Part | Color | Features | Mounting Type | Applications | Connector Type | Voltage Rating | Orientation | Shielding | Shell Material | Insert Material | Primary Material | Current Rating (Amps) | Fastening Type | Shell Size - Insert | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Contact Finish - Mating | Ingress Protection | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Black Silver | Clamp Strain Relief | Free Hanging (In-Line) | Medical Telecommunications Test & Measurement | Plug Male Pins | 320 VAC | N (Normal) | Shielded | Zinc Alloy | Synthetic Resin | Metal | 3 A | Push-Pull | S | Copper Alloy | -55 C | 85 °C | 0.76 Ám | 30 Áin | 0.177 in | 5 mm | 4.5 mm | 0.197 in | Gold | IP68 - Dust Tight Waterproof | Nickel |
