SIP4282 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
IC PWR SWITCH P-CHAN 1:1 4TDFN
| Part | Ratio - Input:Output [custom] | Supplier Device Package | Features | Number of Outputs | Switch Type | Current - Output (Max) [Max] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Vcc/Vdd) | Input Type | Interface | Rds On (Typ) | Output Type | Voltage - Load [Max] | Voltage - Load [Min] | Mounting Type | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 1:1 | 4-TDFN (1.2x1.6) | Load Discharge Slew Rate Controlled | 1 | General Purpose | 1.4 A | 4-UFDFN Exposed Pad | -40 °C | 125 ¯C | Non-Inverting | On/Off | 350 mOhm | P-Channel | 5.5 V | 1.5 V | Surface Mount | High Side | |

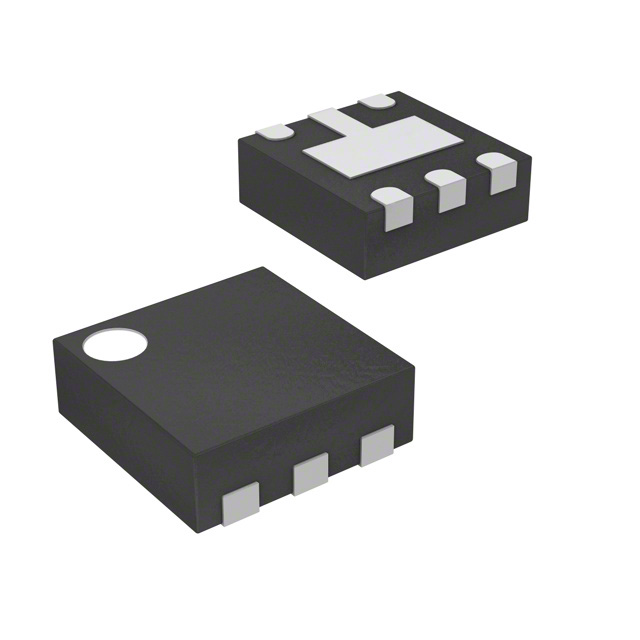

 Vishay General Semiconductor - Diodes Division | 1:1 | PowerPAK® SC-75-6L | Load Discharge Slew Rate Controlled | 1 | General Purpose | 1.4 A | PowerPAK® SC-75-6L | -40 °C | 125 ¯C | Non-Inverting | On/Off | 350 mOhm | P-Channel | 5.5 V | 1.5 V | Surface Mount | High Side |
