HLS308 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

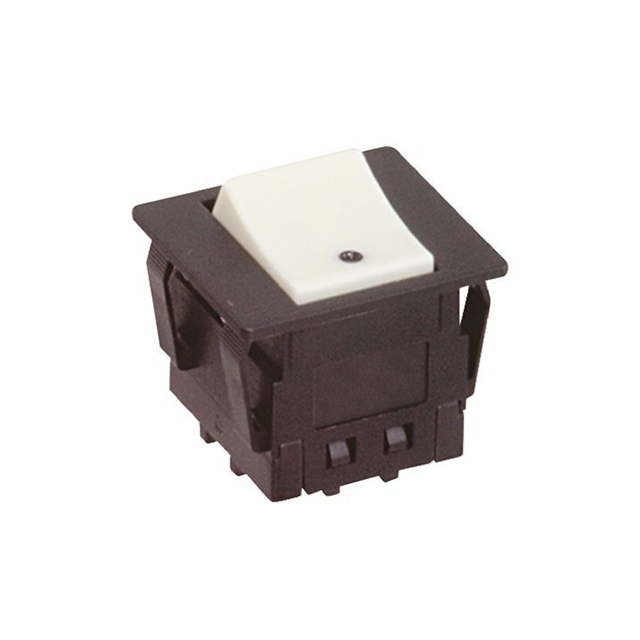

SWITCH ROCKER 3PST 8A 125V
| Part | Mechanical Life | Electrical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Color - Actuator/Cap | Termination Style | Current Rating (Amps) | Mounting Type | Approval Agency | Actuator Marking | Actuator Type | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 5000 Cycles | 5000 Steps | 23.1 mm | 25 mm | -15 °C | 85 °C | On-Off | White | Solder Lug | 8 A | Panel Mount Snap-In | CSA UL | No Marking | Concave (Curved) | 125 V | 3PST |
