DHU251 Series

Catalog

SWITCH PB SPDT 16A 125V

Part	Electrical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Color - Actuator/Cap	Actuator Marking	Mounting Type	Termination Style	Termination Style [custom]	Termination Style [custom]	Type	Current Rating (Amps)	Voltage Rating - AC	Illumination Type, Color	Switch Function	Features
CIT Relay and Switch DHU251LGBBNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Black	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	Blue LED	On-On
CIT Relay and Switch DHU251LGSRNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Silver	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	LED Red	On-On	Stainless Steel
CIT Relay and Switch DHU251NGUBNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Blue	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	Blue LED	On-Mom

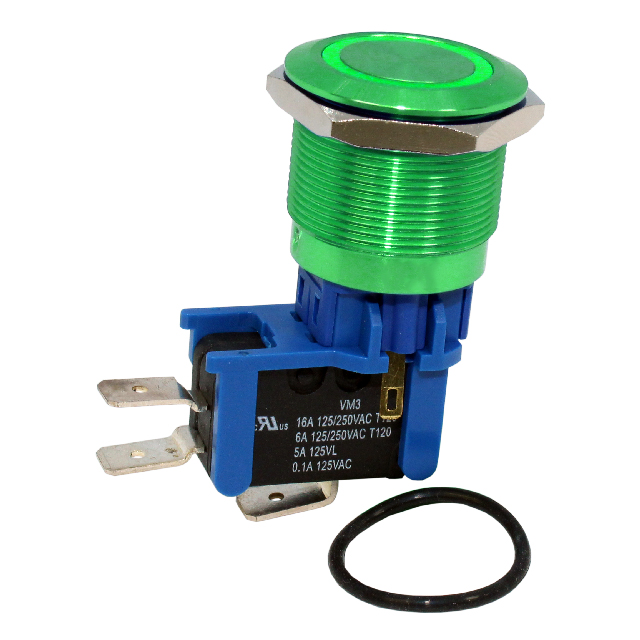

CIT Relay and Switch DHU251NBGGNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Green	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	Green LED	On-Mom
CIT Relay and Switch DHU251LARXZB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Red	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal	16 A	125 V		On-On

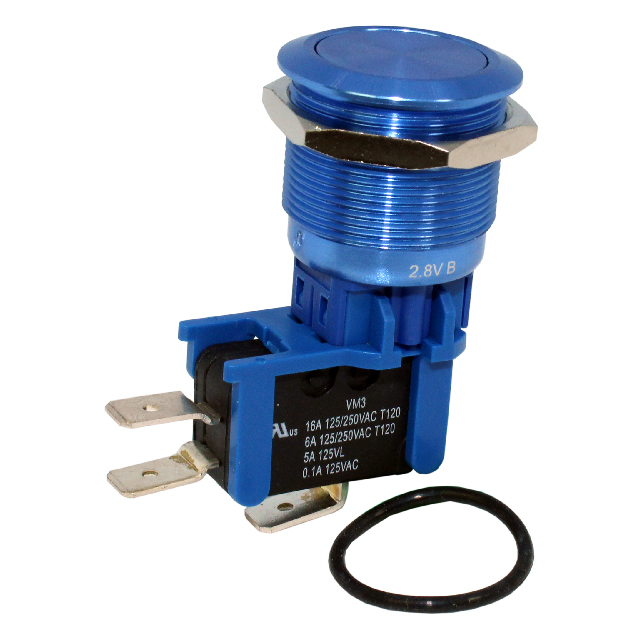

CIT Relay and Switch DHU251NAUXZB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Blue	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal	16 A	125 V		On-Mom

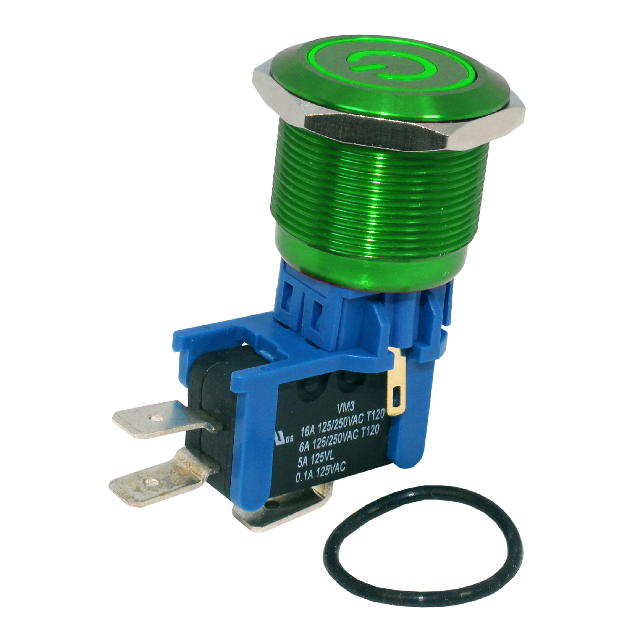

CIT Relay and Switch DHU251LGGGNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Green	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	Green LED	On-On

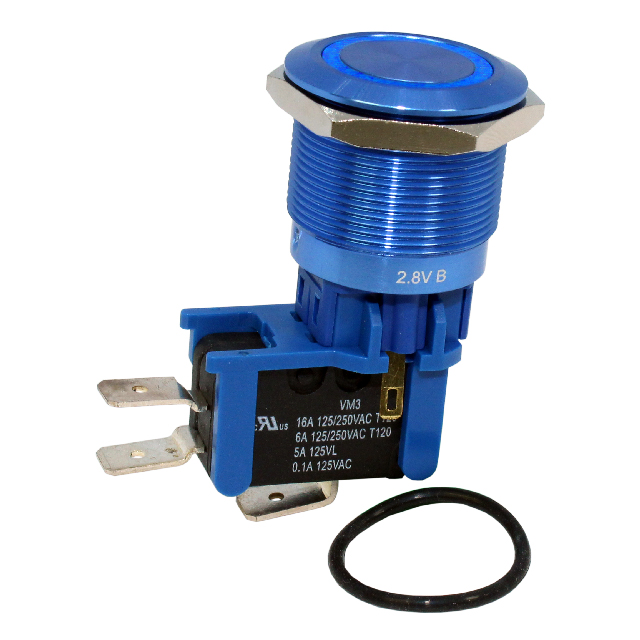

CIT Relay and Switch DHU251LBUBNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Blue	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	Blue LED	On-On

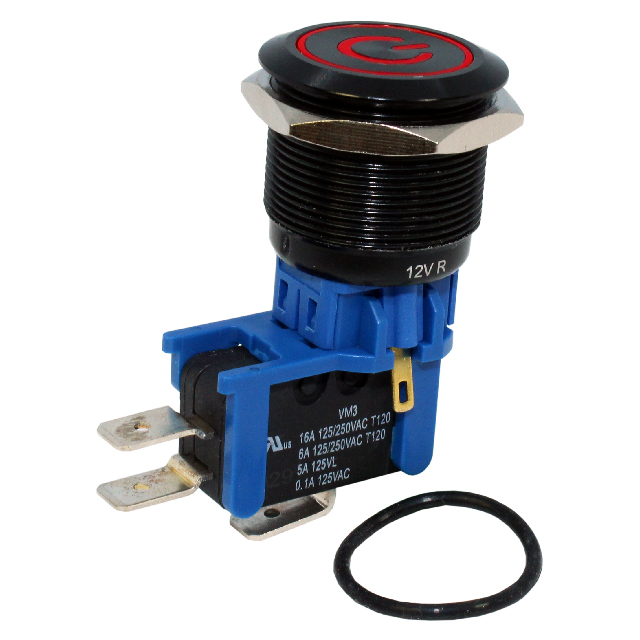

CIT Relay and Switch DHU251NGBRNB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Black	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal Illuminated	16 A	125 V	LED Red	On-Mom

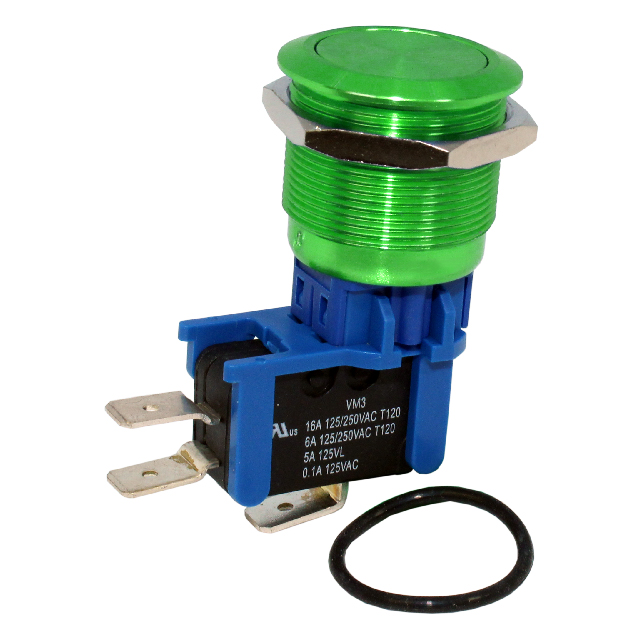

CIT Relay and Switch DHU251LAGXZB	100000 Cycles	Button Flush Round	25 mm	IP67 - Dust Tight Waterproof	85 °C	-40 C	SPDT	Green	No Marking	Panel Mount Front	Quick Connect	0.11 in	0.25 in	Anti-Vandal	16 A	125 V		On-On
