E3T-SR23 Series

Catalog

SENSOR RETROREFLECTIVE 200MM PNP

Part	Ingress Protection	Response Time	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Method	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Connection Method	Light Source

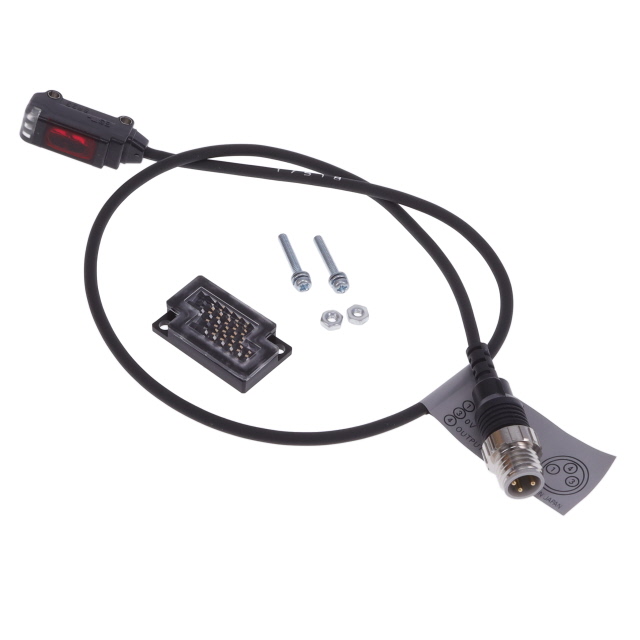

Omron Automation and Safety E3T-SR23-M5J 0.3M	IEC IP67 IP67 IEC	1 ms	10 mm	7.874 "	ADJ	0.394 in	200 mm	Retroreflective	PNP - Open Collector/Light-ON	12 VDC	24 V	55 °C	-25 °C	Connector	RED (650nm)
Omron Automation and Safety E3T-SR23-M1TJ 0.3M	IEC IP67 IP67 IEC	1 ms	10 mm	7.874 "	ADJ	0.394 in	200 mm	Retroreflective	PNP - Open Collector/Light-ON	12 VDC	24 V	55 °C	-25 °C	Connector	RED (650nm)
Omron Automation and Safety E3T-SR23R 2M	IEC IP67 IP67 IEC	1 ms	10 mm	7.874 "	ADJ	0.394 in	200 mm	Retroreflective	PNP - Open Collector/Light-ON	12 VDC	24 V	55 °C	-25 °C	Cable	RED (650nm)
