726-055 Series
Manufacturer: EDAC Inc.
Beta
⌘K

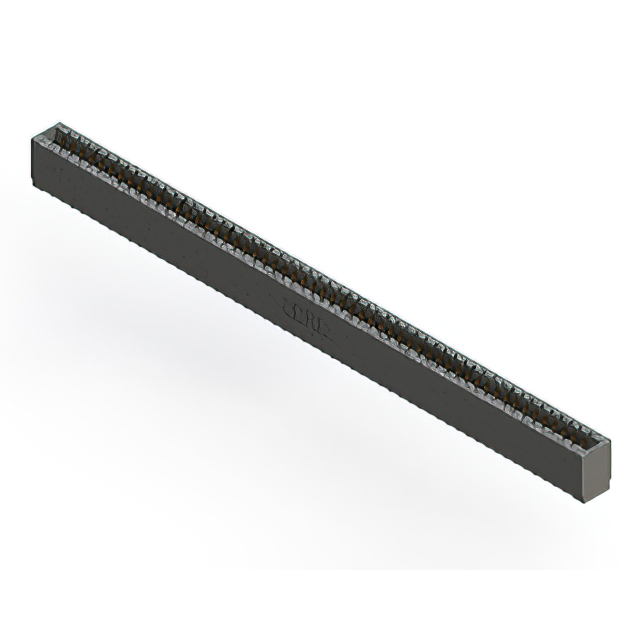

CONN EDGE SGL FMALE 55POS 0.125
| Part | Material - Insulation | Termination Rows | Card Type | Pitch | Pitch | Number of Rows | Number of Positions | Read Out | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Termination | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Contact Finish | Number of Positions/Bay/Row | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | Polyester Thermoplastic | 1 | Non Specified - Single Edge | 3.18 mm | 0.125 in | 1 | 55 | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Female | -40 C | 105 ░C | Black | Cantilever | Gold | 55 | Copper Alloy | 30 Áin | 0.76 Ám |
