PTS453 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Function	Actuator Orientation	Actuator Height off PCB, Vertical	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Features	Illumination	Contact Rating @ Voltage	Operating Force	Mechanical Life	Circuit	Actuator Type	Outline [x]	Outline [y]

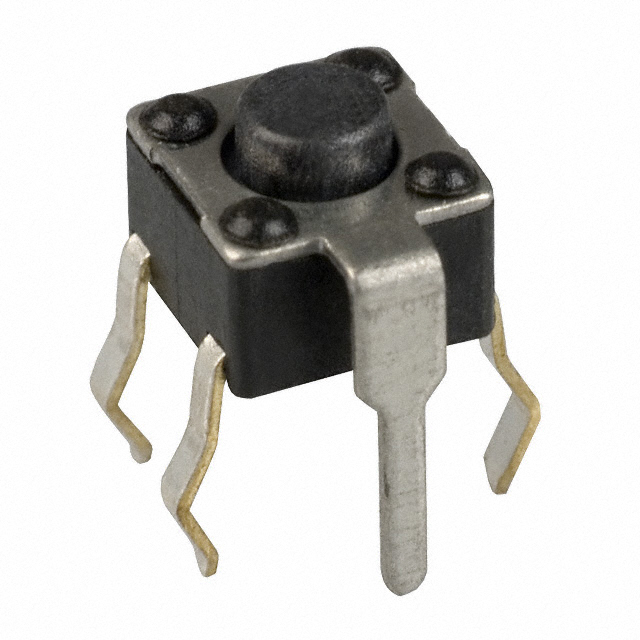

Littelfuse/Commercial Vehicle Products PTS453TL38	Off-Mom	Top Actuated	3.8 mm	Nylon 6/6 Polyamide (PA66)	-40 °C	60 °C	Through Hole	PC Pin	Grounding Pin	Non-Illuminated	0.05 A 12 VDC	130 gf	25000 Steps	SPST-NO	Standard	4.5 mm	4.5 mm

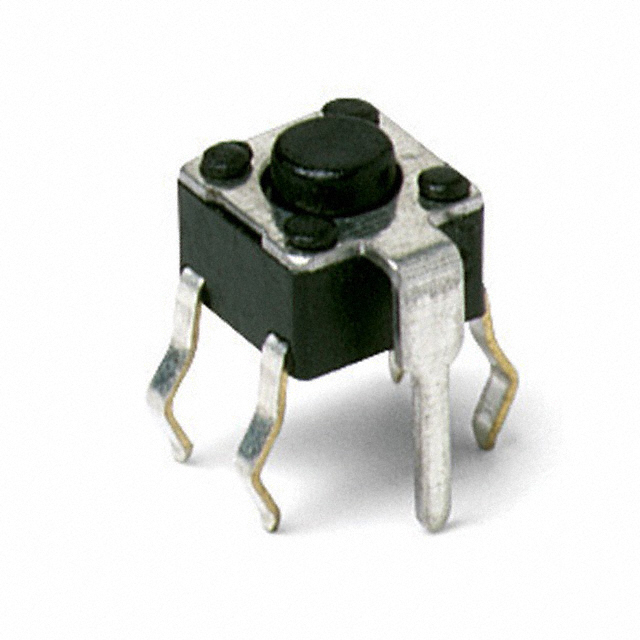

Littelfuse/Commercial Vehicle Products PTS453TL38 LFS	Off-Mom	Top Actuated	3.8 mm	Nylon 6/6 Polyamide (PA66)	-40 °C	60 °C	Through Hole	PC Pin	Grounding Pin	Non-Illuminated	0.05 A 12 VDC	130 gf	25000 Steps	SPST-NO	Standard	4.5 mm	4.5 mm
