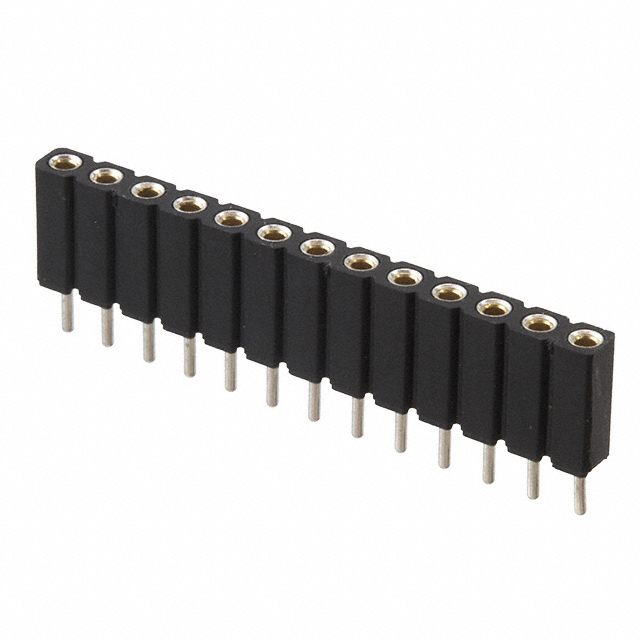

SBL-13 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
CONN RCPT 13POS 0.1 GOLD PCB
| Part | Contact Shape | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Number of Positions Loaded | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Insulation Color | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post | Contact Type | Number of Rows | Termination | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Circular | Polybutylene Terephthalate (PBT) Glass Filled | 5 µm | 196.9 µin | Brass | 13 | -55 C | 125 °C | Through Hole | Receptacle | All | Gold | 0.118 in | 3 mm | Black | 0.276 in | 7 mm | Push-Pull | Tin | Female Socket | 1 | Solder | UL94 V-0 | 0.1 " | 2.54 mm | 0.25 µm | 10 µin |
