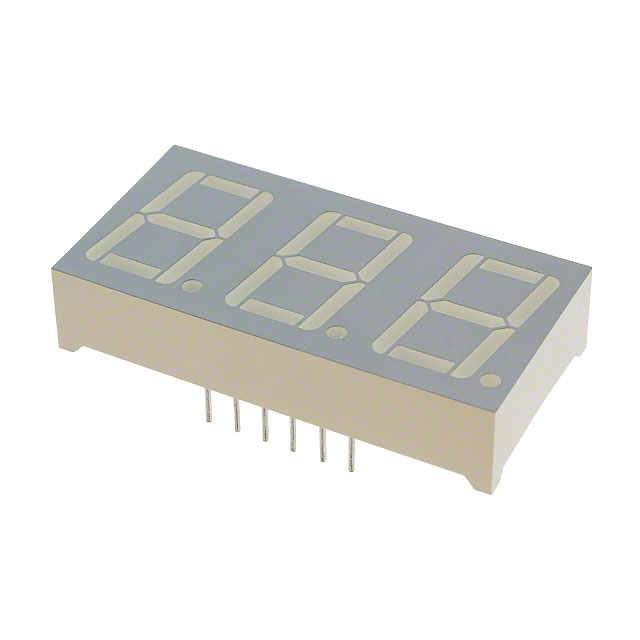

BC56-12 Series

Catalog

DISPLAY 7SEG 0.56" TRP YLW 12DIP

Part	Voltage - Forward (Vf) (Typ)	Current - Test	Number of Characters	Millicandela Rating	Package / Case	Package / Case	Package / Case	Common Pin	Power Dissipation (Max) [Max]	Wavelength - Peak	Display Type	Digit/Alpha Size	Digit/Alpha Size	Color	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Kingbright BC56-12SYKWA	2 V	20 mA	3	120 mcd	15.24 mm	0.6 in	12-DIP	Common Cathode	75 mw	590 nm	7-Segment	0.56 in	14.22 mm	Yellow
Kingbright BC56-12GWA	2.2 V	20 mA	3	8.6 mcd	15.24 mm	0.6 in	12-DIP	Common Cathode	62.5 mW	565 nm	7-Segment	0.56 in	14.22 mm	Green	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in
Kingbright BC56-12SRWA	1.85 V	20 mA	3	34 mcd	15.24 mm	0.6 in	12-DIP	Common Cathode	75 mw	660 nm	7-Segment	0.56 in	14.22 mm	Red	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in
Kingbright BC56-12SURKWA	1.95 V	20 mA	3	73 mcd	15.24 mm	0.6 in	12-DIP	Common Cathode	75 mw	650 nm	7-Segment	0.56 in	14.22 mm	Red
Kingbright BC56-12EWA	2 V	20 mA	3	5.8 mcd	15.24 mm	0.6 in	12-DIP	Common Cathode	75 mw	627 nm	7-Segment	0.56 in	14.22 mm	Red	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in
Kingbright BC56-12CGKWA	2.1 V	20 mA	3	35 mcd	15.24 mm	0.6 in	12-DIP	Common Cathode	75 mw		7-Segment	0.56 in	14.22 mm	Green	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in
