ID25P33 Series

Catalog

CONN D-SUB PLUG 25POS R/A SLDR

Part	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Dielectric Material	Contact Type	Material Flammability Rating	Features	Connector Style	Termination	Contact Finish	Mounting Type	Backset Spacing	Backset Spacing	Number of Rows [custom]	Number of Positions	Connector Type	Contact Finish Thickness	Flange Feature	Flange Feature	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout [x]
Amphenol ICC (FCI) ID25P33E4GX28LF	300 VDC	Copper Alloy	-55 C	125 °C	Black	Polyester	Signal	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	D-Sub	Solder	Gold	Right Angle Through Hole	8.08 mm	0.318 "	2	25	Plug Male Pins	Flash	Housing/Shell	4-40	5 A	B DB	3
Amphenol ICC (FCI) ID25P33E4GX96LF	300 VDC	Copper Alloy	-55 C	125 °C	Black	Polyester	Signal	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	D-Sub	Solder	Gold	Right Angle Through Hole	8.08 mm	0.318 "	2	25	Plug Male Pins	Flash	Housing/Shell	4-40	5 A	B DB	3

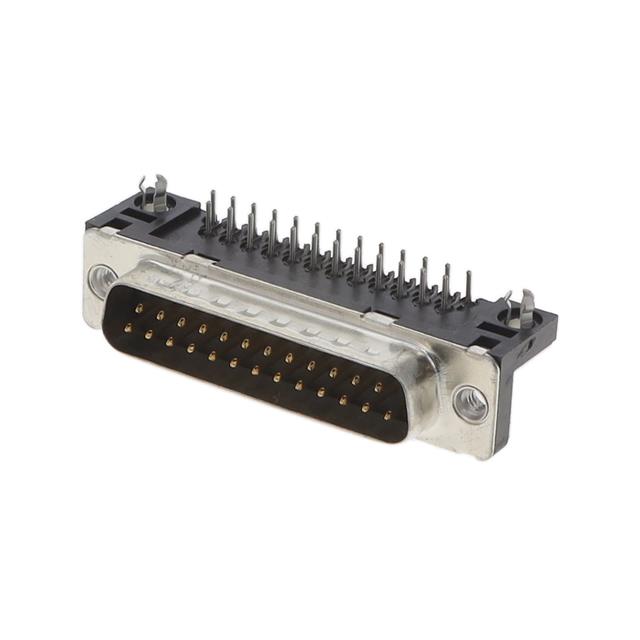

Amphenol ICC (FCI) ID25P33E4GX00LF	300 VDC	Copper Alloy	-55 C	125 °C	Black	Polyester	Signal	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	D-Sub	Solder	Gold	Right Angle Through Hole	8.08 mm	0.318 "	2	25	Plug Male Pins	Flash	Housing/Shell	4-40	5 A	B DB	3
Amphenol ICC (FCI) ID25P33E4GX00	300 VDC		-55 C	125 °C	Black	Polyester	Signal		Board Lock	D-Sub	Solder	Gold	Right Angle Through Hole			2	25	Plug Male Pins	Flash	Housing/Shell	4-40	5 A	B DB	3
Amphenol ICC (FCI) ID25P33E4GV00	300 VDC		-55 C	125 °C	Black	Polyester	Signal		Board Lock	D-Sub	Solder	Gold	Right Angle Through Hole			2	25	Plug Male Pins	Flash	4-40 Mating Side Female Screwlock		5 A	B DB	3
