IO-XLR5 Series
Manufacturer: IO Audio Technologies
Beta
⌘K
XLR CONNECTOR, R/A, 5 CONTACTS, JACK, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY
| Part | Insert Material [custom] | Insert Material [custom] | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Mounting Feature | Features | Voltage Rating | Contact Finish - Mating | Orientation | Termination | Current Rating (Amps) | Connector Type | Color | Fastening Type | Primary Material | Material Flammability Rating | Mounting Type | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Number of Positions | Shell Material | Shell Finish | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IO Audio Technologies | Nylon | Polyamide (PA) | Brass | 0.05 Ám | 1.97 Áin | Audio Lighting Control | Flange | Board Guide Board Lock Ground | 50 VAC | Gold | Keyed | Solder | 3 A | Receptacle Female Sockets | Black Silver | Latch Lock | Plastic | UL94 HB | Panel Mount Right Angle Through Hole | XLR | 70 °C | -40 C | Unshielded | 5 | |||
 IO Audio Technologies | Nylon | Polyamide (PA) | Brass | Audio Lighting Control Medical Video | Flange | Board Guide Ground | Gold | Keyed | Solder | Receptacle Female Sockets | Black | Latch Lock | Plastic | Panel Mount Through Hole | XLR | Unshielded | 5 | ||||||||||
 IO Audio Technologies | Nylon | Polyamide (PA) | Phosphor Bronze | Audio Lighting Control Medical Video | Flange | Ground | 125 VAC | Silver | Keyed | 7.5 A | Receptacle Male Pins | Silver | Latch Lock | Metal | Panel Mount | XLR | Shielded | 5 | Zinc Die Cast | Nickel | |||||||

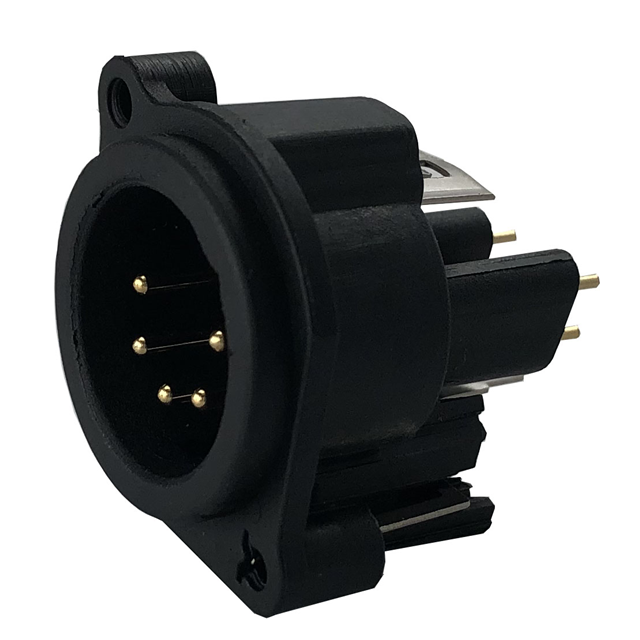

 IO Audio Technologies | Nylon | Polyamide (PA) | Brass | Audio Lighting Control Medical Video | Flange | Board Guide Ground | Gold | Keyed | Solder | Receptacle Male Pins | Black | Latch Lock | Plastic | Panel Mount Through Hole | XLR | Unshielded | 5 | ||||||||||
 IO Audio Technologies | Nylon | Polyamide (PA) | Brass | Audio Lighting Control Medical Video | Flange | Board Guide Board Lock Ground | Gold | Keyed | Solder | Receptacle Female Sockets | Black | Latch Lock | Plastic | Panel Mount Right Angle Through Hole | XLR | Unshielded | 5 | ||||||||||
 IO Audio Technologies | Nylon | Polyamide (PA) | Brass | 0.05 Ám | 1.97 Áin | Audio Lighting Control | Flange | Board Guide Board Lock Ground | 50 VAC | Gold | Keyed | Solder | 3 A | Receptacle Male Pins | Black Silver | Latch Lock | Plastic | UL94 HB | Panel Mount Right Angle Through Hole | XLR | 70 °C | -40 C | Unshielded | 5 | |||
 IO Audio Technologies | Phosphor Bronze | Audio | Backshell Strain Relief | 1500 VAC | Silver | 7.5 A | Plug Female Sockets | Black | Latch Lock | Metal | Free Hanging (In-Line) | XLR | Unshielded | 5 | Zinc Die Cast | Zinc Die Cast | |||||||||||
 IO Audio Technologies | Nylon | Polyamide (PA) | Phosphor Bronze | Audio Lighting Control Medical Video | Flange | Ground | 125 VAC | Silver | Keyed | 7.5 A | Receptacle Female Sockets | Black | Latch Lock | Metal | Panel Mount | XLR | Shielded | 5 | Zinc Die Cast | Black | |||||||

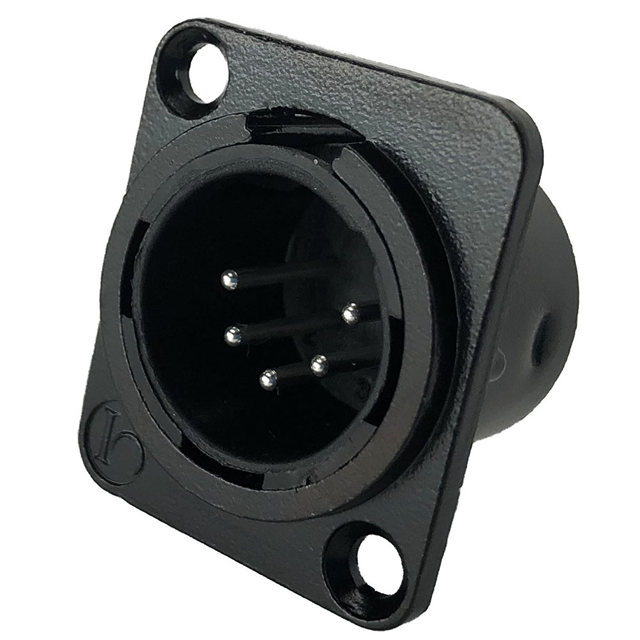

 IO Audio Technologies | Nylon | Polyamide (PA) | Phosphor Bronze | Audio Lighting Control Medical Video | Flange | Ground | 125 VAC | Silver | Keyed | 7.5 A | Receptacle Male Pins | Black | Latch Lock | Metal | Panel Mount | XLR | Shielded | 5 | Zinc Die Cast | Black | |||||||
 IO Audio Technologies | Nylon | Polyamide (PA) | Brass | Audio Lighting Control Medical Video | Flange | Board Guide Ground | Gold | Keyed | Solder | Receptacle Male Pins | Black | Latch Lock | Plastic | Panel Mount Right Angle Through Hole | XLR | Unshielded | 5 |
