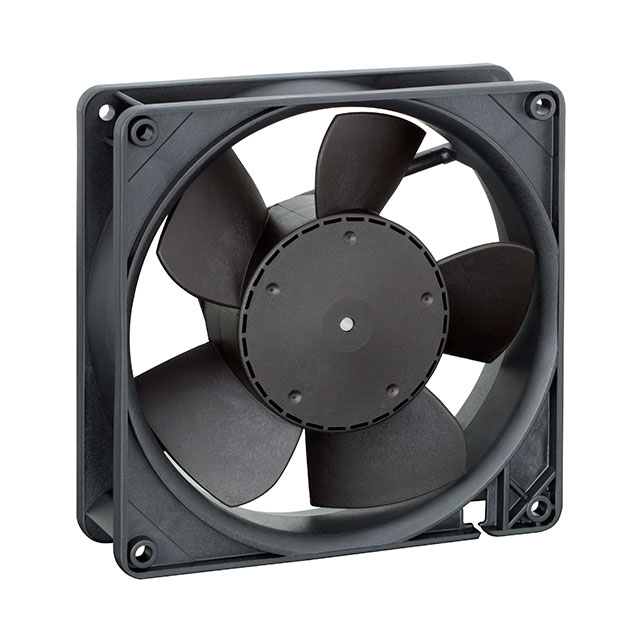

5214N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
DC FAN AXIAL BALL BEARING 24V 12V TO 28V 148.3CFM 51DB 127 X 127 X 38MM HIGH SPEED
| Part | Material - Blade [custom] | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Bearing Type | Power (Watts) | Voltage - Rated | Noise | Size / Dimension [z] | Size / Dimension [x] | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Approval Agency | Weight | Weight | Width [y] | RPM | Fan Type | Material - Blade | Operating Temperature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | 28 V | 12 VDC | 45000 Hrs | Aluminum | Ball | 9.8 W | 24 VDC | 51 dB(A) | 5 in | 5 " | 4.15 m³/min | 148.3 CFM | -20 ░C | 70 °C | 2 Wire Leads | CE CSA UL VDE | 0.683 lb | 309.8 g | 38 mm | 3650 RPM | Tubeaxial | |||
 ebm-papst Inc. | 30 V | 16 VDC | 45000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Ball | 17.5 W | 24 VDC | 58 dB(A) | 5 in | 5 " | 5.68 mł/min | 203 CFM | -20 ░C | 65 °C | 2 Wire Leads | 0.684 lb | 310.26 g | 38 mm | 4900 RPM | Tubeaxial | Polyamide (PA) Nylon Fiberglass Reinforced | (-20 ~ 65°C) | |||
 ebm-papst Inc. | 30 V | 16 VDC | 45000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Ball | 17.5 W | 24 VDC | 58 dB(A) | 5 in | 5 " | 5.68 mł/min | 203 CFM | -20 ░C | 65 °C | 3 Wire Leads | 0.684 lb | 310.26 g | 38 mm | 4900 RPM | Tubeaxial | Polyamide (PA) Nylon Fiberglass Reinforced | (-20 ~ 65°C) | Locked Rotor Protection Speed Sensor (Tach) |
