M5670 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

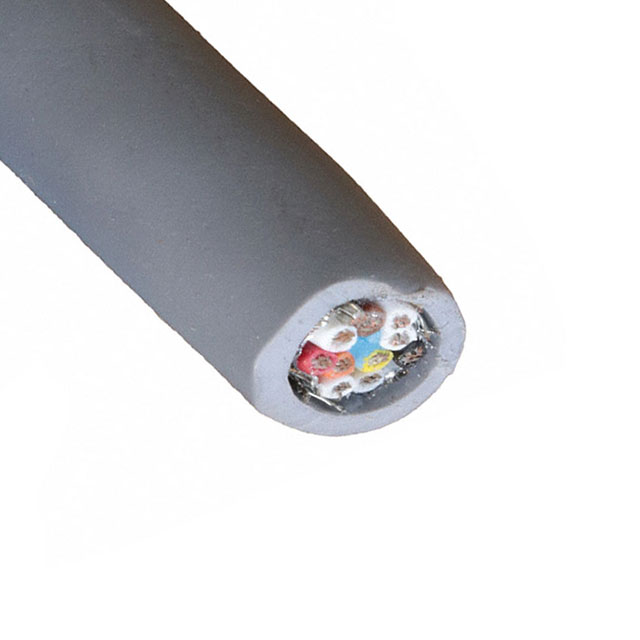

MULTI-PAIR 10COND 20AWG
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Number of Conductors | Conductor Material | Features | Cable Type | Shield Type | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket Color | Wire Gauge | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 70 % 100 % | 80 °C | -20 ░C | 28 AWG | 7 | 0.413 " | 10.49 mm | 10 | Copper Tinned | Drain Wire Rip Cord | Multi-Pair | Braid Foil | UL Style 2343 | 1.6 mm | 0.063 in | 300 VDC | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Slate | 20 AWG | Poly-Vinyl Chloride (PVC) |
