MHR-26 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 26POS 2.54MM

Part	Contact Finish Thickness - Post	Features	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Connector Type	Current Rating (Amps)	Contact Shape	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Post	Number of Rows [custom]	Termination	Contact Material	Insulation Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Style	Voltage Rating	Number of Positions Loaded	Insulation Height [z]	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Contact Type	Mounting Type	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Length - Post	Insulation Height

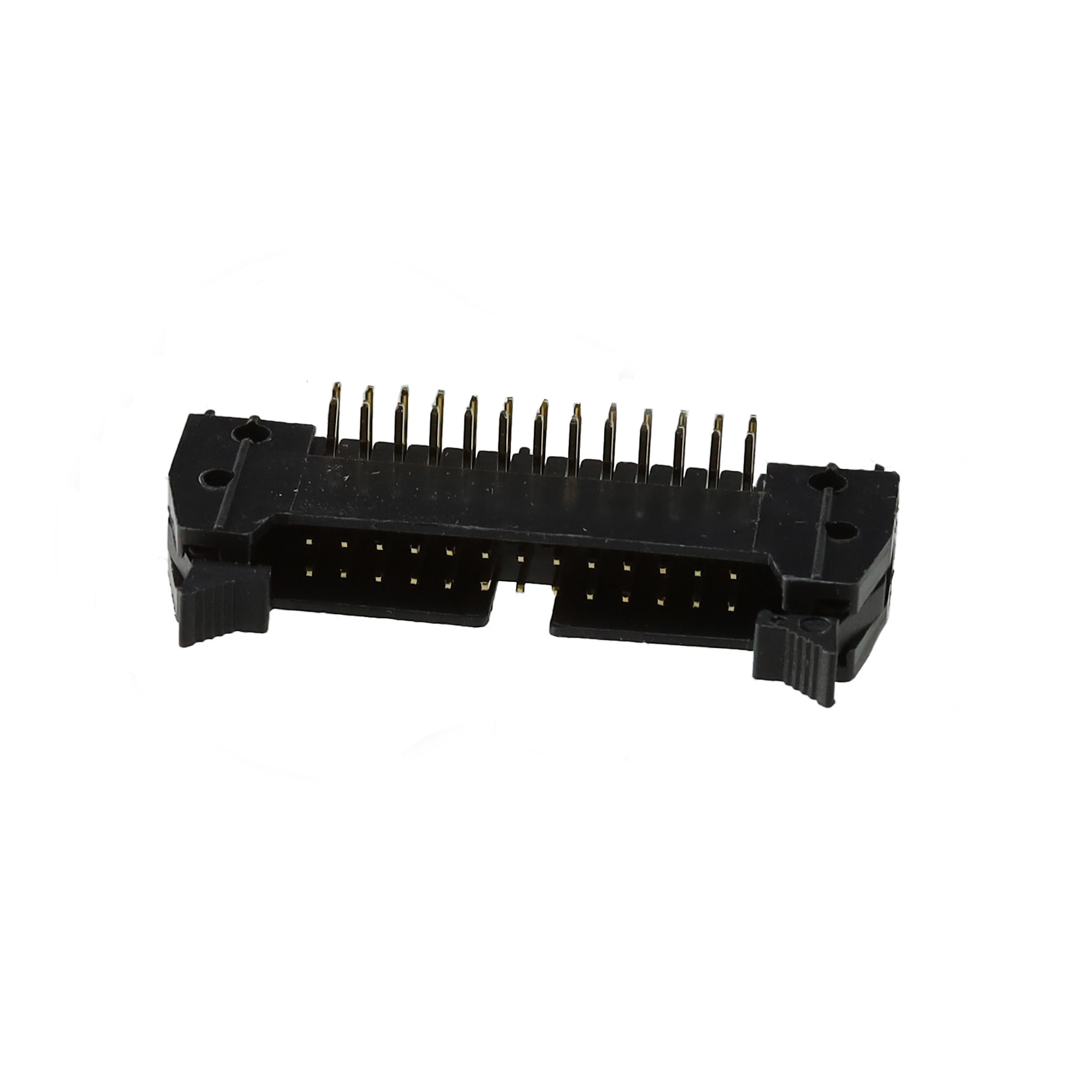

Adam Tech MHR-26-HUAS	Flash	Keying Slot	-55 C	105 ░C	Latch Lock/Eject Hooks	Header	3 A	Square	Gold	0.157 in	4 mm	Gold	2	Solder	Brass	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 "	2.54 mm	Board to Cable/Wire	250 VAC	All	0.331 in	8.4 mm	0.1 in	2.54 mm	Shrouded - 4 Wall	Male Pin	Right Angle Through Hole	26	Black	Flash

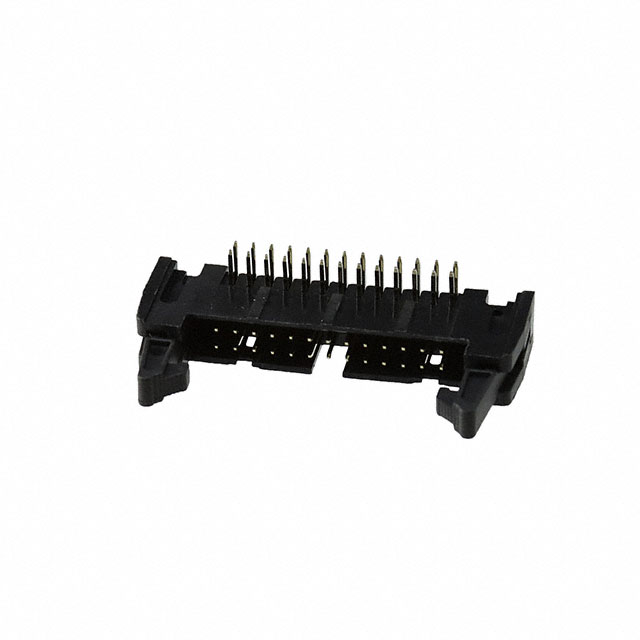

Adam Tech MHR-26-HUAL	Flash	Keying Slot	-55 C	105 ░C	Latch Lock/Eject Hooks Long	Header	3 A	Square	Gold		3.6 mm	Gold	2	Solder	Brass	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 "	2.54 mm	Board to Cable/Wire	250 VAC	All	0.331 in	8.4 mm	0.1 in	2.54 mm	Shrouded - 4 Wall	Male Pin	Right Angle Through Hole	26	Black	Flash	0.142 in

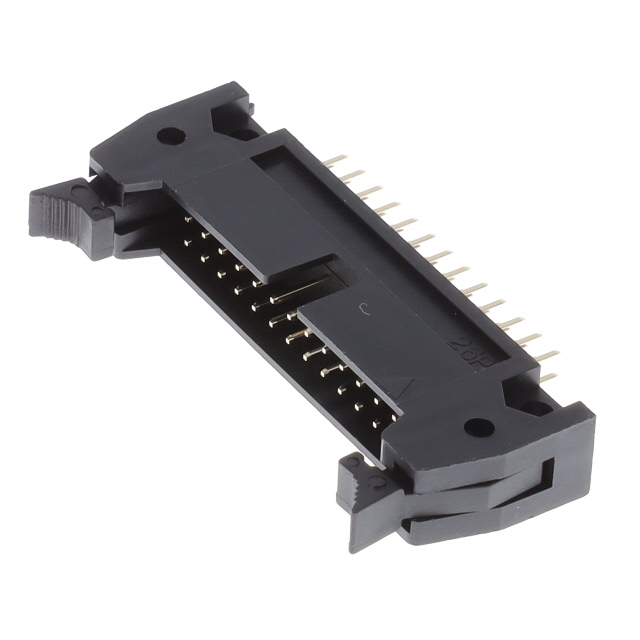

Adam Tech MHR-26-VUAS	Flash		-55 C	105 ░C	Latch Lock/Eject Hooks	Header	3 A	Square	Gold	0.134 "	3.4 mm	Gold	2	Solder	Brass	Polybutylene Terephthalate (PBT)	UL94 V-0	0.1 "	2.54 mm	Board to Cable/Wire	250 VAC	All		17.2 mm	0.1 in	2.54 mm	Shrouded - 4 Wall	Male Pin	Through Hole	26	Black	Flash		0.677 in
