XUL536 Series

Catalog

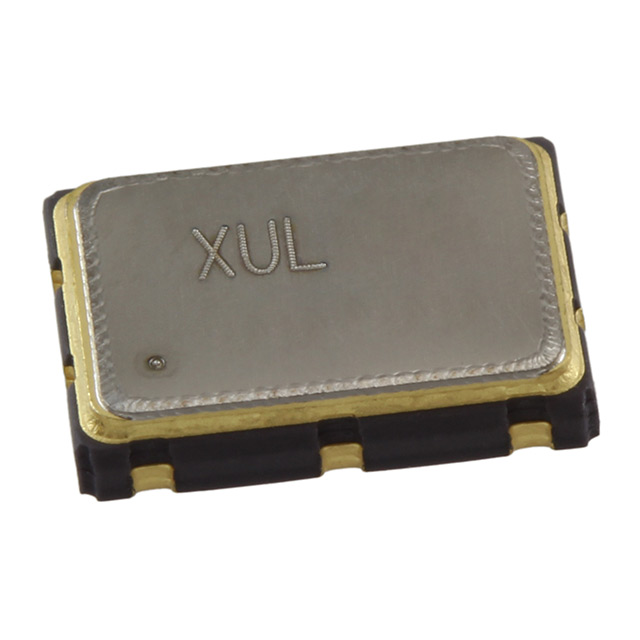

XTAL OSC XO 150.0000MHZ LVDS SMD

Part	Type	Current - Supply (Max) [Max]	Frequency	Frequency Stability	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Output	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator [custom]	Function	Voltage - Supply	Package / Case
Renesas Electronics Corporation XUL536150.000JS6I	XO (Standard)	97 mA	150 MHz	25 ppm	Surface Mount	85 °C	-40 C	3.2 mm	0.126 in	5 mm	0.197 in	LVDS	1.2 mm	0.047 "	Crystal	Enable/Disable	3.3 V	4-SMD No Lead
Renesas Electronics Corporation XUL536156.250000I	XO (Standard)	65 mA	156.25 MHz	25 ppm	Surface Mount	85 °C	-40 C	3.2 mm	0.126 in	5 mm	0.197 in	LVDS	1.2 mm	0.047 "	Crystal	Enable/Disable	3.3 V	6-SMD No Lead
Renesas Electronics Corporation XUL536644.531250I	XO (Standard)	97 mA	644.53125 MHz	25 ppm	Surface Mount	85 °C	-40 C	3.2 mm	0.126 in	5 mm	0.197 in	LVDS	1.2 mm	0.047 "	Crystal	Enable/Disable	3.3 V	6-SMD No Lead
