857-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SPRING TARGET 8POS PCB

Part	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Row Spacing	Row Spacing	Pitch	Pitch	Number of Contacts	Material	Number of Rows [custom]	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 857-10-008-10-051000	Through Hole	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	8	Brass Alloy	2
Mill-Max Manufacturing Corp. 857-10-038-30-002000	Surface Mount	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	38	Brass Alloy	2
Mill-Max Manufacturing Corp. 857-10-034-10-002000	Through Hole	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm		Brass Alloy	2

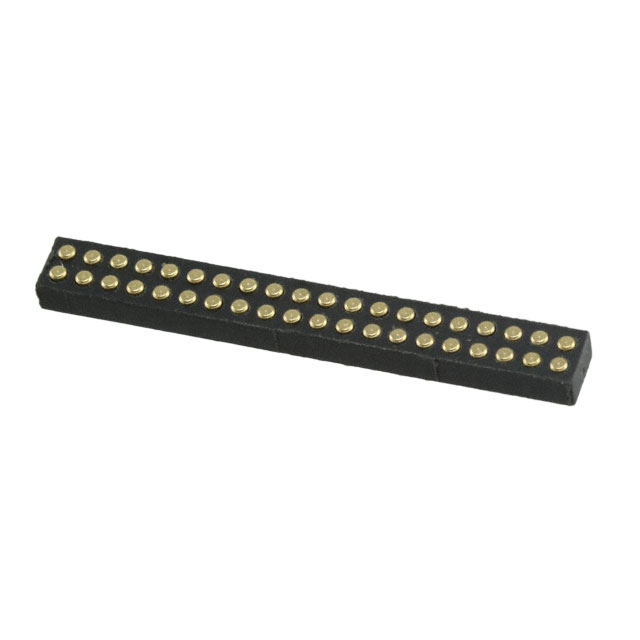

Mill-Max Manufacturing Corp. 857-10-040-30-051000	Surface Mount	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	40	Brass Alloy	2
Mill-Max Manufacturing Corp. 857-10-006-10-051000	Through Hole	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	6	Brass Alloy	2
Mill-Max Manufacturing Corp. 857-10-024-10-051000	Through Hole	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm		Brass Alloy	2	24

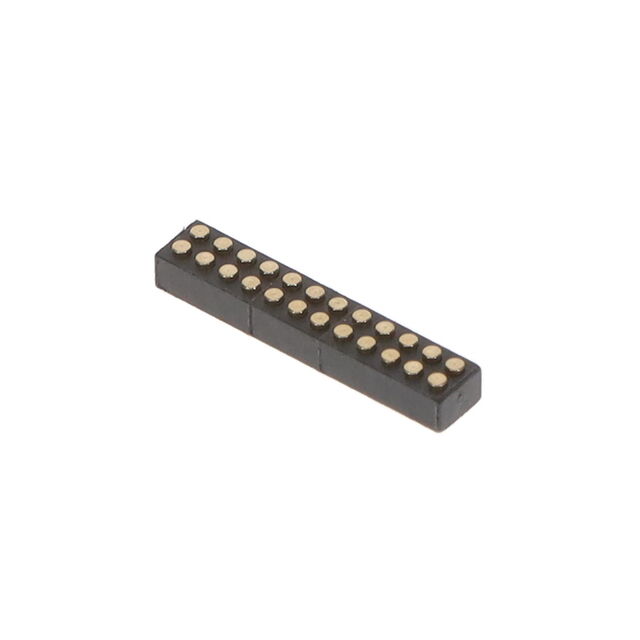

Mill-Max Manufacturing Corp. 857-10-024-30-051000	Surface Mount	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm		Brass Alloy	2	24
Mill-Max Manufacturing Corp. 857-10-006-30-051000	Surface Mount	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	6	Brass Alloy	2

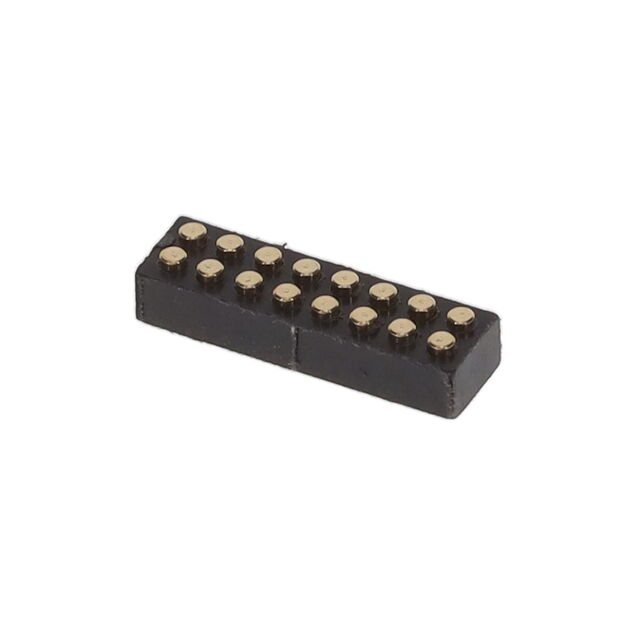

Mill-Max Manufacturing Corp. 857-10-016-30-002000	Surface Mount	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	16	Brass Alloy	2
Mill-Max Manufacturing Corp. 857-10-026-10-051000	Through Hole	0.25 Ám	10 Áin	Gold	Mating Target	1.27 mm	0.05 "	0.05 in	1.27 mm	26	Brass Alloy	2
