CABLE 366 Series
Manufacturer: GCT
Beta
⌘K

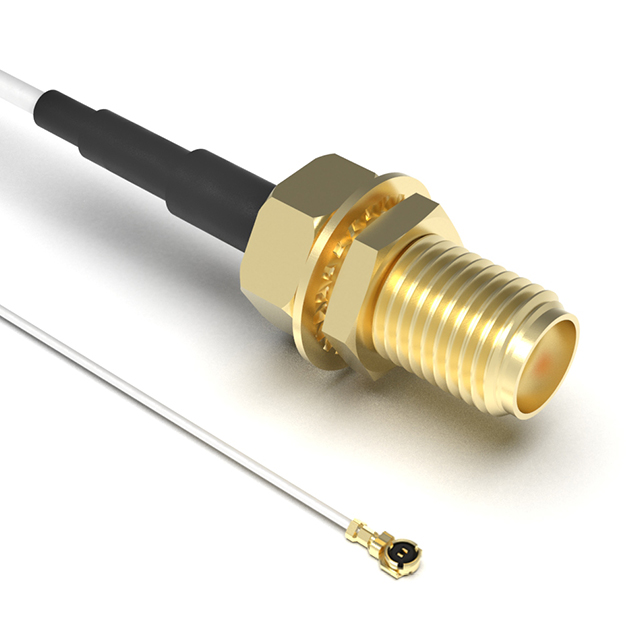

CBL ASSY SMA-JSC JACK-PLG 7.874"
| Part | 2nd Contact Gender | 1st Connector | Cable Type | Cable Type [diameter] | Cable Impedance | Style | 1st Connector Mounting Feature | Length | Length | 1st Contact Gender | 2nd Connector Mounting Type | Color | Frequency - Max [Max] | 2nd Connector | Operating Temperature [Max] | Operating Temperature [Min] | Overall Impedance | 1st Connector Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Female | SMA Jack | Coaxial Cable | 0.81 mm | 50 Ohms | SMA to JSC | Bulkhead - Front Side Nut | 200 mm | 7.874 in | Female | Free Hanging (In-Line) | White | 6000 MHz | JSC Plug Right Angle | 85 °C | -40 C | 50 Ohms | Panel Mount | |
Female | SMA Jack | Coaxial Cable | 0.81 mm | 50 Ohms | SMA to JSC | Bulkhead - Front Side Nut | 200 mm | 7.874 in | Female | Free Hanging (In-Line) | White | 6000 MHz | JSC Plug Right Angle | 85 °C | -40 C | 50 Ohms | Panel Mount |
