GR-2021 Series

Catalog

SWITCH ROCKER DPST 16A 125V

Part	Mechanical Life	Electrical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination Style	Actuator Type	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Circuit	Switch Function	Actuator Marking	Voltage Rating - AC

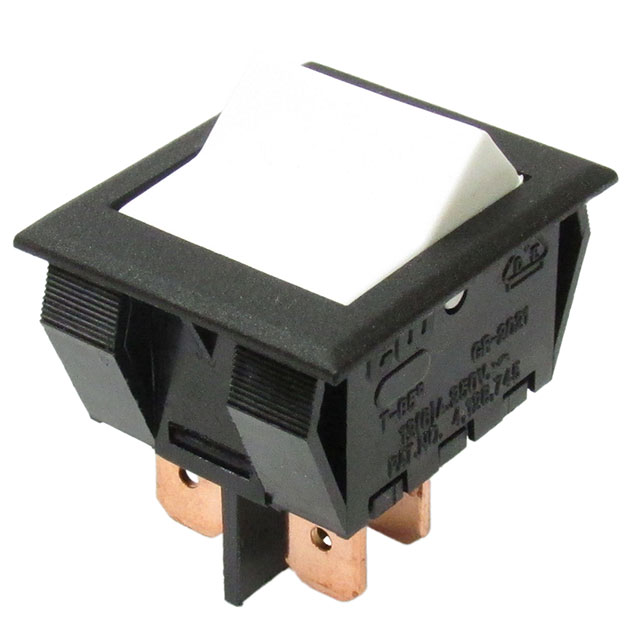

CW Industries GR-2021-0014	100000 Cycles	25000 Steps	Panel Mount Snap-In	-20 ░C	105 ░C	Terminal Barriers	Quick Connect - 0.250" (6.3mm)	Concave	16 A	22.15 mm	27.2 mm	White	DPST	On-Off	No Marking	125 V

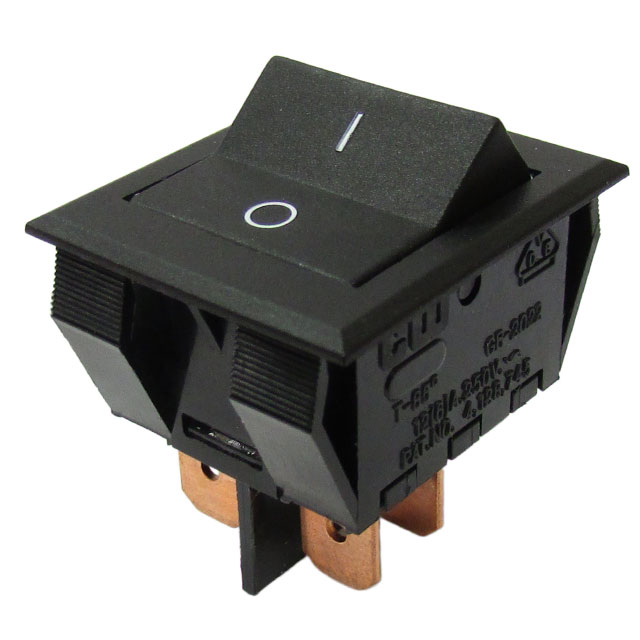

CW Industries GR-2021-0008	25000 Steps	25000 Steps	Panel Mount Snap-In	-20 ░C	105 ░C	Terminal Barriers	Quick Connect - 0.250" (6.3mm)	Concave	16 A	22.15 mm	27.2 mm	Black	DPST	On-Off	O I	125 V
CW Industries GR-2021-0000	25000 Steps	25000 Steps	Panel Mount Snap-In	-20 ░C	105 ░C	Terminal Barriers	Quick Connect - 0.250" (6.3mm)	Concave	16 A	22.15 mm	27.2 mm	Black	DPST	On-Off	No Marking	125 V

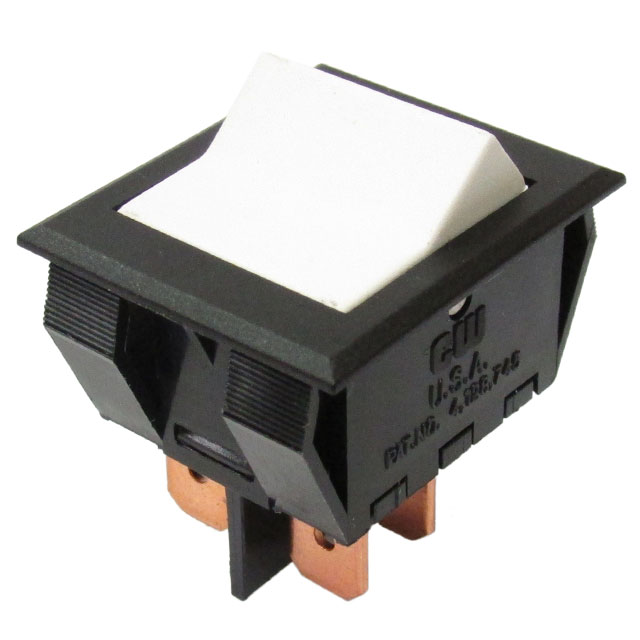

CW Industries GR-2021-0013	25000 Steps	25000 Steps	Panel Mount Snap-In	-20 ░C	105 ░C	Terminal Barriers	Quick Connect - 0.250" (6.3mm)	Concave	8 A	22.15 mm	27.2 mm	White	DPST	On-Off	No Marking	125 V

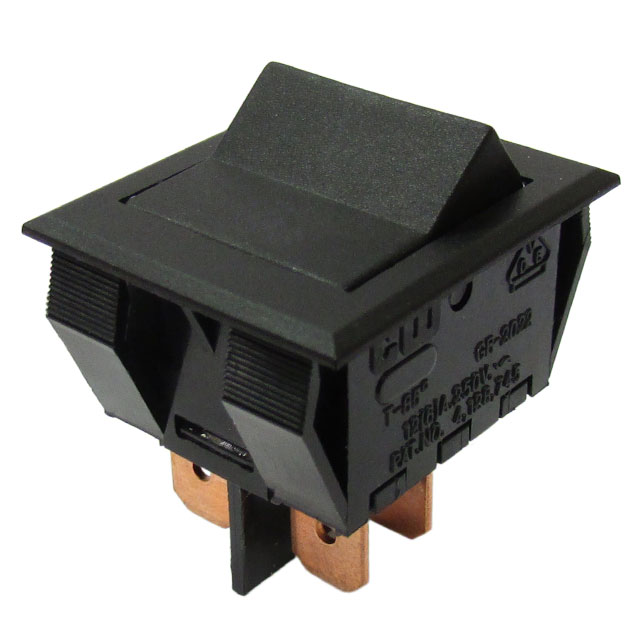

CW Industries GR-2021B-0000	25000 Steps	25000 Steps	Panel Mount Snap-In	-20 ░C	105 ░C	Terminal Barriers	Quick Connect - 0.250" (6.3mm)	Concave	13 A	22.15 mm	27.2 mm	Black	DPST-NO	Off-Mom	No Marking	125 V

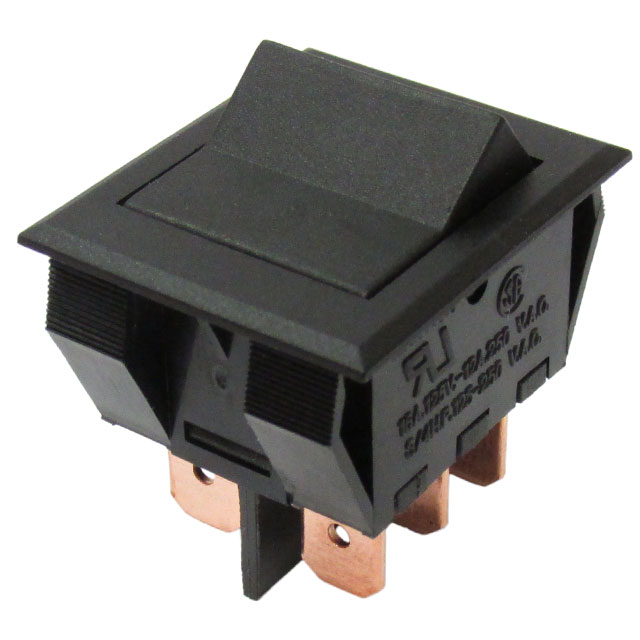

CW Industries GR-2021C-0000	25000 Steps	25000 Steps	Panel Mount Snap-In	-20 ░C	105 ░C	Terminal Barriers	Quick Connect - 0.250" (6.3mm)	Concave	13 A	22.15 mm	27.2 mm	Black	DPST-NO	Off-Mom	No Marking	125 V
