GW QTLTS2.QM Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

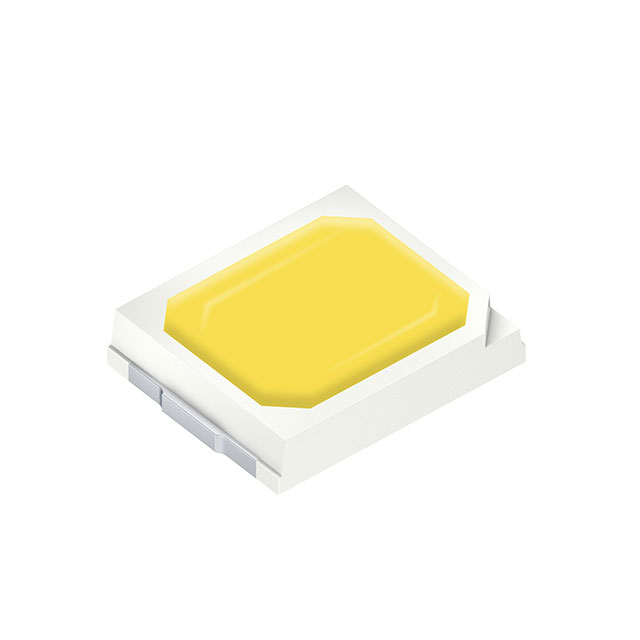

LED OSCONIQ COOL WHT 5000K 2835
| Part | Package / Case | Viewing Angle | Mounting Type | CRI (Color Rendering Index) | Color | Height - Seated (Max) [Max] | Height - Seated (Max) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] | Supplier Device Package | Current - Max [Max] | Voltage - Forward (Vf) (Typ) | CCT (K) | Current - Test | Flux @ 25°C, Current - Test | Flux @ 25°C, Current - Test | Flux @ 25°C, Current - Test | Lumens/Watt @ Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 1113 (2835 Metric) | 120 ° | Surface Mount | 90 | Cool White | 0.031 in | 0.8 mm | 0.11 in | 2.8 mm | 0.138 in | 3.5 mm | 41 lm | 30 lm | 2835 | 200 mA | 2.71 V | 5000 K | 65 mA | ||||
ams-OSRAM USA INC. | 1113 (2835 Metric) | 120 ° | Surface Mount | 90 | Warm White | 0.031 in | 0.8 mm | 0.11 in | 2.8 mm | 0.138 in | 3.5 mm | 2835 | 200 mA | 2.71 V | 2700 K | 65 mA | 36 lm | 27 lm | 32 lm | 182 lm/W |
