AST215 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

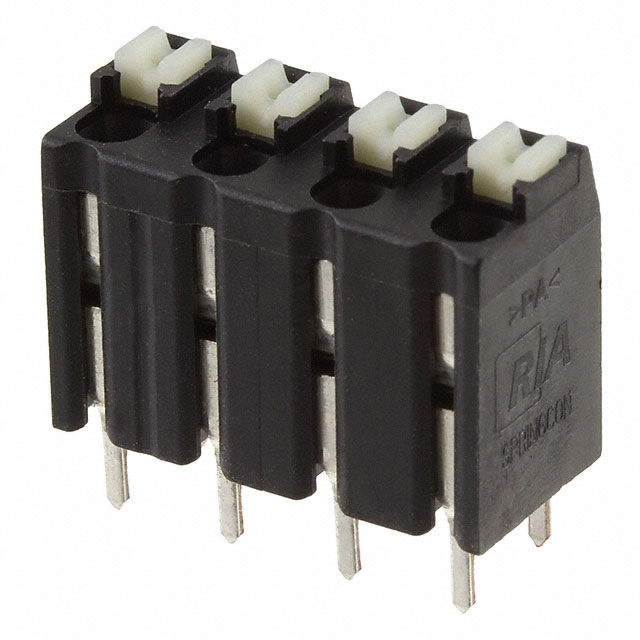

TERM BLK 4POS TOP ENTRY 5MM PCB
| Part | Housing Material | Contact Material - Plating | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Orientation | Number of Levels | Mounting Type | Pitch | Pitch | Color | Positions Per Level | Current | Wire Termination | Features | Voltage | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 4 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 13 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 12 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 11 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 5 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 10 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 2 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 8 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
 METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 3 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
METZ CONNECT USA Inc. | Nylon 6T Polyamide (PA6T) | Copper Alloy - Tin Plated | Steel | -40 C | 105 ░C | Vertical with Board | 1 | Through Hole | 0.197 in | 5 mm | Black | 6 | 10 A | Screwless - Spring Cage Tension Clamp | Push Button Actuated | 300 VDC | 28 AWG | 16 AWG |
