0034.5705 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

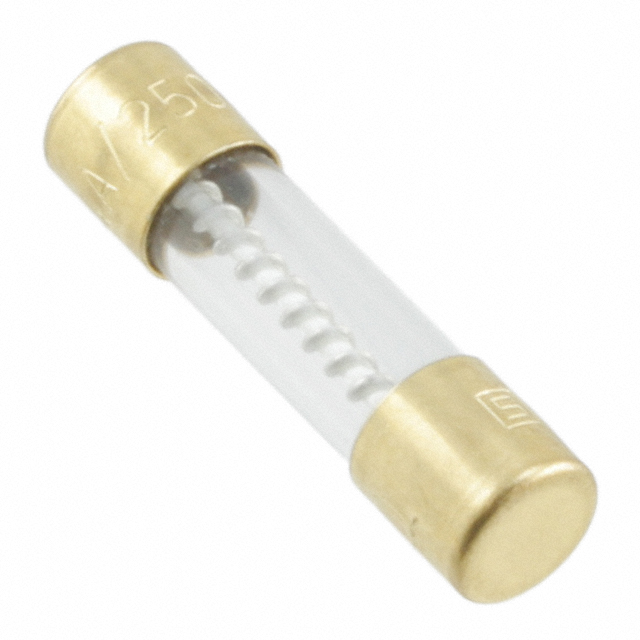

FUSE GLASS 160MA 250VAC 5X20MM
| Part | Voltage Rating - AC | Melting I²t | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Mounting Type | Breaking Capacity @ Rated Voltage | Response Time | Current Rating (Amps) | Package / Case [x] | Package / Case [y] | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 250 V | 1 | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Requires Holder | 35 A | Slow Blow | 160 mA | 5 mm | 20 mm | Cartridge Glass | -55 C | 125 °C |
