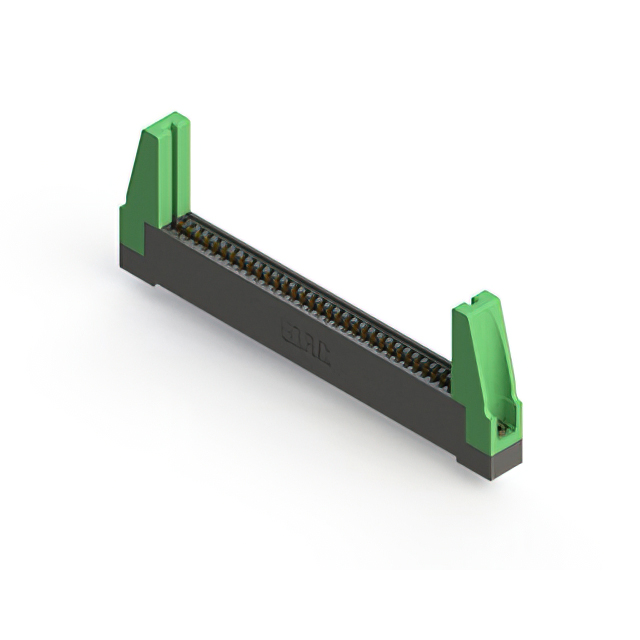

395-034 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 34POS 0.100
| Part | Material - Insulation | Termination Rows | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Card Thickness [Max] | Card Thickness [Min] | Features | Color | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions [custom] | Card Type | Number of Positions/Bay/Row | Read Out | Number of Rows | Contact Material | Contact Type | Contact Finish | Pitch | Pitch | Termination | Termination Rows [custom] | Number of Positions/Bay/Row [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Single Edge | 34 | Single | 1 | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Wire Wrap | |||||
 EDAC Inc. | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 0.25 Ám | 10 Áin | Right Angle Through Hole | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Solder | 2 | 17 | 2 | ||||||
 EDAC Inc. | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Extender | Black | 0.25 Ám | 10 Áin | Board Edge Straddle Mount | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Solder Eyelet(s) | 2 | 17 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Side Mount Opening Unthreaded | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Single Edge | 34 | Single | 1 | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Solder | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | Floating Bobbin Flush Mount | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Wire Wrap | 2 | 17 | 2 | 0.116 " | 2.95 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 0.25 Ám | 10 Áin | Right Angle Through Hole | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Solder | 2 | 17 | 2 | 0.156 " | 3.96 mm | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Floating Bobbin Top Mount Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Single Edge | 34 | Single | 1 | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Solder | 0.116 " | 2.95 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Wire Wrap | 2 | 17 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Wire Wrap | 2 | 17 | 2 | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Card Guides | Black | 0.25 Ám | 10 Áin | Through Hole | 34 | Non Specified - Dual Edge | Dual | Copper Alloy | Cantilever | Gold | 0.1 " | 2.54 mm | Solder | 2 | 17 | 2 |
