322-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

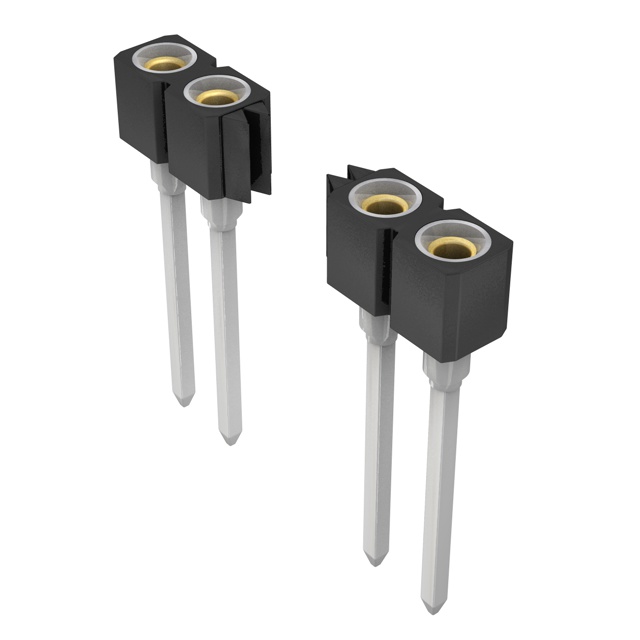

CONN SOCKET 18POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Shape | Contact Material | Connector Type | Contact Finish - Mating | Insulation Height | Insulation Height | Number of Positions | Number of Positions Loaded | Material Flammability Rating | Number of Rows | Contact Finish Thickness - Mating | Current Rating (Amps) | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Style | Pitch - Mating | Pitch - Mating | Contact Type | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Insulation Color | Mounting Type | Number of Positions | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 18 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | 47 | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 29 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 48 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 43 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | 34 | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 20 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 21 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 37 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole | ||
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Gold | 4.9 mm | 0.193 " | 54 | All | UL94 V-0 | 1 | Flash | 3 A | Push-Pull | -55 C | 125 °C | Wire Wrap | Board to Cable/Wire | 0.1 " | 2.54 mm | Female Socket | 9.4 mm | 0.37 in | Tin | Black | Through Hole |
