TPA3008D2 Series

10-W stereo, 8.5- to 18-V supply, analog input Class-D audio amplifier

Catalog

10-W stereo, 8.5- to 18-V supply, analog input Class-D audio amplifier

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load	Mounting Type	Type	Contents	Supplied Contents	Utilized IC / Part	Board Type
Texas Instruments TPA3008D2PHP	85 °C	-40 °C	48-HTQFP (7x7)	2-Channel (Stereo)	48-PowerTQFP	8.5 V	18 V	10 W	Surface Mount	Class D
Texas Instruments TPA3008D2PHPR	85 °C	-40 °C	48-HTQFP (7x7)	2-Channel (Stereo)	48-PowerTQFP	8.5 V	18 V	10 W	Surface Mount	Class D
Texas Instruments TPA3008D2PHPRG4	85 °C	-40 °C	48-HTQFP (7x7)	2-Channel (Stereo)	48-PowerTQFP	8.5 V	18 V	10 W	Surface Mount	Class D

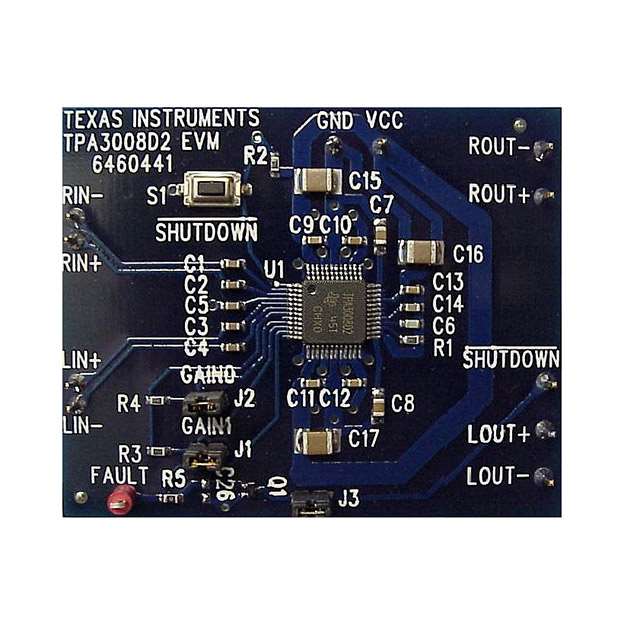

Texas Instruments TPA3008D2EVM				2-Channel (Stereo)		8.5 V	18 V	10 W			Board(s)	Board(s)	TPA3008D2	Fully Populated

Catalog

10-W stereo, 8.5- to 18-V supply, analog input Class-D audio amplifier

Key Features

• 10-W/Channel Into an 16-Load From a17-V SupplyUp to 92% Efficient, Class-D OperationEliminates Need For Heatsinks8.5-V to 18-V Single-Supply OperationFour Selectable, Fixed Gain SettingsDifferential Inputs Minimizes Common-Mode NoiseSpace-Saving, Thermally Enhanced PowerPAD™ PackagingThermal and Short-Circuit ProtectionWith Auto Recovery OptionPinout Similar to TPA3000D FamilyAPPLICATIONSLCD Monitors and TVsAll-In-One PCsPowerPAD Is a trademark of Texas Instruments10-W/Channel Into an 16-Load From a17-V SupplyUp to 92% Efficient, Class-D OperationEliminates Need For Heatsinks8.5-V to 18-V Single-Supply OperationFour Selectable, Fixed Gain SettingsDifferential Inputs Minimizes Common-Mode NoiseSpace-Saving, Thermally Enhanced PowerPAD™ PackagingThermal and Short-Circuit ProtectionWith Auto Recovery OptionPinout Similar to TPA3000D FamilyAPPLICATIONSLCD Monitors and TVsAll-In-One PCsPowerPAD Is a trademark of Texas Instruments

Description

The TPA3008D2 is a 10-W (per channel) efficient, class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3008D2 can drive stereo speakers as low as 8. The high efficiency of the TPA3008D2 eliminates the need for external heatsinks when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 15.3, 21.2, 27.2, and 31.8 dB. The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts. A fault terminal allows short-circuit fault reporting and automatic recovery. Thermal protection ensures that the maximum junction temperature is not exceeded. The TPA3008D2 is a 10-W (per channel) efficient, class-D audio amplifier for driving bridged-tied stereo speakers. The TPA3008D2 can drive stereo speakers as low as 8. The high efficiency of the TPA3008D2 eliminates the need for external heatsinks when playing music. The gain of the amplifier is controlled by two gain select pins. The gain selections are 15.3, 21.2, 27.2, and 31.8 dB. The outputs are fully protected against shorts to GND, VCC, and output-to-output shorts. A fault terminal allows short-circuit fault reporting and automatic recovery. Thermal protection ensures that the maximum junction temperature is not exceeded.
