HM2R81 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

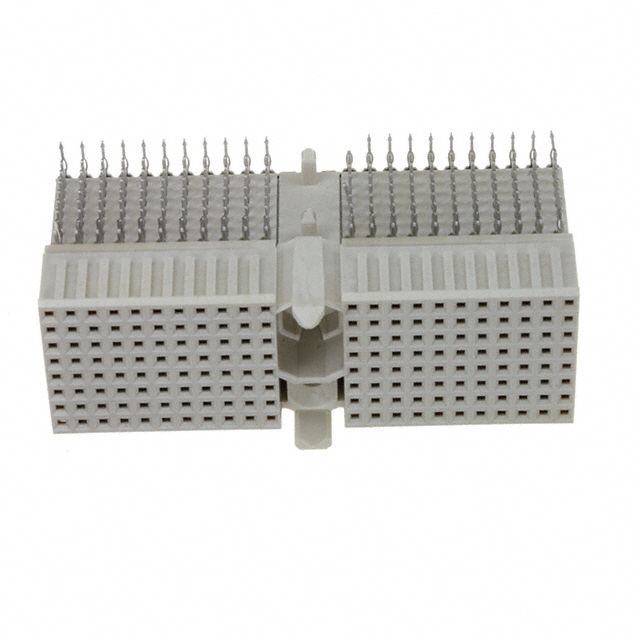

MPACS 8R RA REC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Current Rating (Amps) | Features | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Termination | Number of Positions | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | |||||||||||||||||
 Amphenol ICC (FCI) | -55 C | 125 °C | 750 Vrms | 1.5 A | Upper Shield | 0.079 in | 2 mm | 8 | Board Edge Right Angle Through Hole | Press-Fit | 176 | D 22 | 30 Áin | 0.76 Ám | Gold | Receptacle Female Sockets | All |
Amphenol ICC (FCI) | -55 C | 125 °C | 750 Vrms | 1.5 A | 0.079 in | 2 mm | 8 | Board Edge Right Angle Through Hole | Press-Fit | 176 | D 22 | 30 Áin | 0.76 Ám | Gold | Receptacle Female Sockets | All |
