PEC30 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Finish - Post	Number of Positions	Material Flammability Rating	Number of Rows [custom]	Insulation Height	Insulation Height	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Type	Fastening Type	Style	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Length - Post	Contact Length - Post	Shrouding	Number of Positions Loaded	Current Rating (Amps)	Termination	Overall Contact Length	Overall Contact Length	Connector Type	Number of Rows	Contact Length - Post [custom]	Contact Length - Post [custom]	Overall Contact Length	Insulation Height [z]	Insulation Height [z]

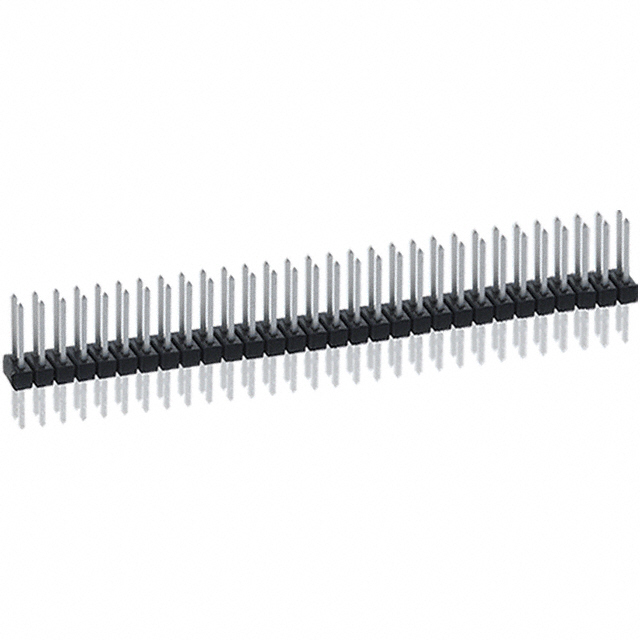

Sullins Connector Solutions PEC30DFBN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2	0.1 in	2.54 mm	Phosphor Bronze	8.08 mm	0.318 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	5.58 mm	0.22 in	Unshrouded	All	3 A	Solder	0.638 in	16.21 mm	Header Breakaway
Sullins Connector Solutions PEC30DAHN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2	0.1 in	2.54 mm	Phosphor Bronze	5.84 mm	0.23 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	20.83 mm	0.82 in	Unshrouded	All	3 A	Solder	1.15 in	29.21 mm	Header Breakaway

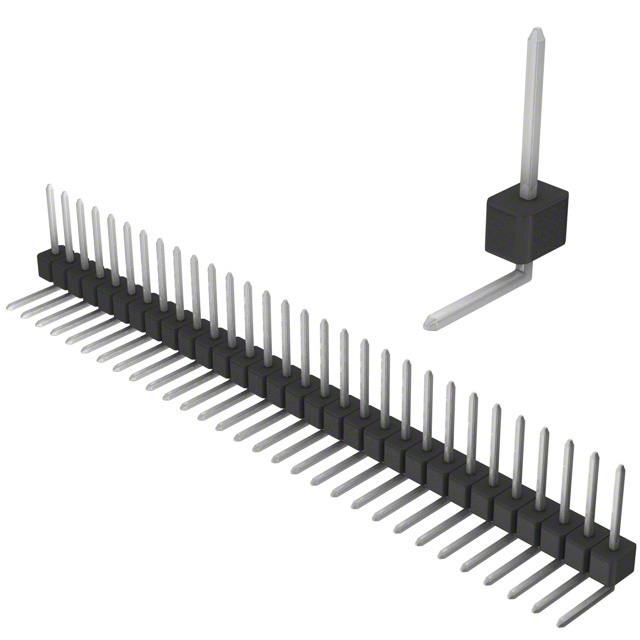

Sullins Connector Solutions PEC30SGBN	2.54 µm	100 µin	Right Angle Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	30	UL94 V-0		0.14 in	3.56 mm	Phosphor Bronze	8.08 mm	0.318 in	Male Pin	Push-Pull	Board to Board Cable	Square			0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)			Unshrouded	All	3 A	Solder			Header Breakaway	1	5.08 mm	0.2 "

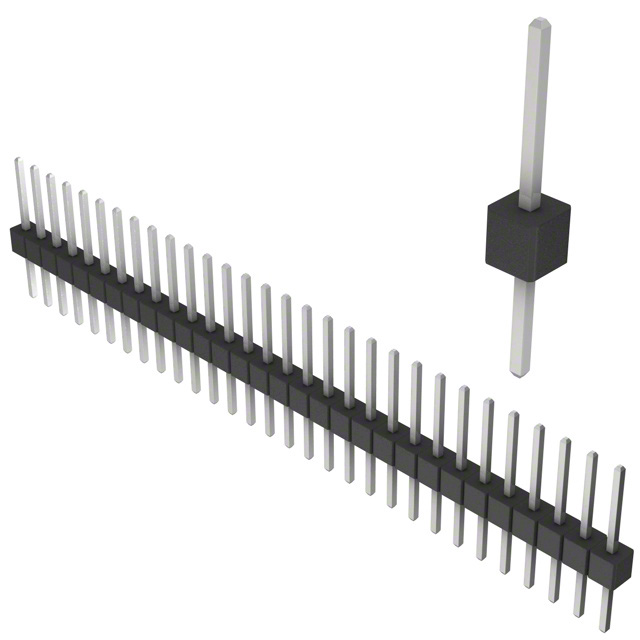

Sullins Connector Solutions PEC30SFBN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	30	UL94 V-0		0.1 in	2.54 mm	Phosphor Bronze	8.08 mm	0.318 in	Male Pin	Push-Pull	Board to Board Cable	Square			0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	5.58 mm	0.22 in	Unshrouded	All	3 A	Solder	0.638 in	16.21 mm	Header Breakaway	1
Sullins Connector Solutions PEC30DFCN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2	0.1 in	2.54 mm	Phosphor Bronze	8.08 mm	0.318 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	8.13 mm	0.32 in	Unshrouded	All	3 A	Solder		18.75 mm	Header Breakaway				0.738 in

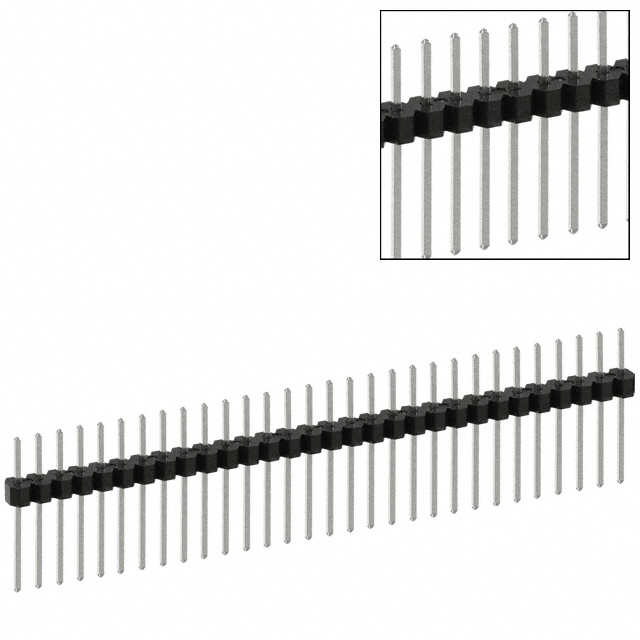

Sullins Connector Solutions PEC30SAEN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	30	UL94 V-0		0.1 in	2.54 mm	Phosphor Bronze	5.84 mm	0.23 in	Male Pin	Push-Pull	Board to Board Cable	Square			0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	13.21 mm	0.52 in	Unshrouded	All	3 A	Solder	0.85 in	21.59 mm	Header Breakaway	1

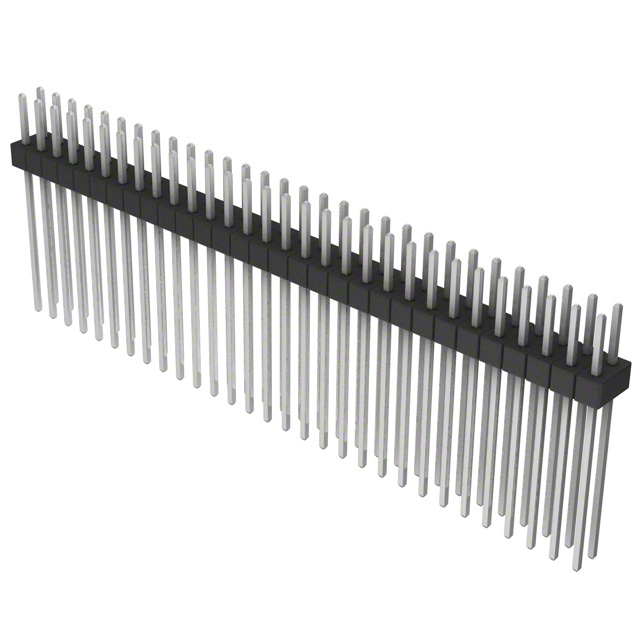

Sullins Connector Solutions PEC30DAGN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2	0.1 in	2.54 mm	Phosphor Bronze	5.84 mm	0.23 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	18.29 mm	0.72 "	Unshrouded	All	3 A	Solder	1.05 in	26.67 mm	Header Breakaway
Sullins Connector Solutions PEC30DBAN	2.54 µm	100 µin	Right Angle Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2			Phosphor Bronze	5.84 mm	0.23 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Unshrouded	All	3 A	Solder			Header Breakaway					6.1 mm	0.24 in

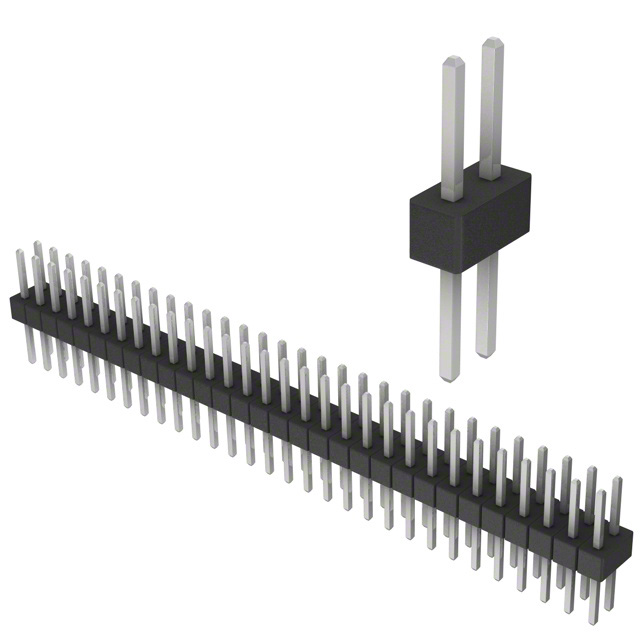

Sullins Connector Solutions PEC30DABN	2.54 µm	100 µin	Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2	0.1 in	2.54 mm	Phosphor Bronze	5.84 mm	0.23 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)	5.84 mm	0.23 "	Unshrouded	All	3 A	Solder	0.56 in	14.22 mm	Header Breakaway
Sullins Connector Solutions PEC30DGBN	2.54 µm	100 µin	Right Angle Through Hole	-65 ░C	125 °C	100 çin	2.54 çm	Black	Tin	60	UL94 V-0	2			Phosphor Bronze	8.08 mm	0.318 in	Male Pin	Push-Pull	Board to Board Cable	Square	0.1 in	2.54 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT)			Unshrouded	All	3 A	Solder			Header Breakaway		5.08 mm	0.2 "		6.1 mm	0.24 in
