745078 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

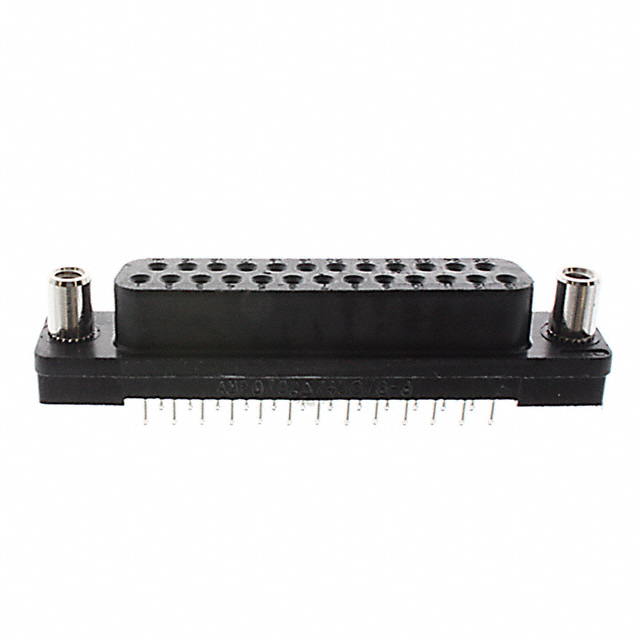

CONN D-SUB RCPT 25POS VERT SLDR
| Part | Voltage Rating | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Termination | Connector Type | Number of Rows [custom] | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish Thickness | Contact Finish | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | Polyester | Phosphor Bronze | Black | -55 C | 105 ░C | 4-40 Mating Side Female Screwlock | Solder | Receptacle Female Sockets | 2 | D-Sub | B DB | 3 | Flash | Gold | UL94 V-0 | 6 A | 25 | Signal | Through Hole |
