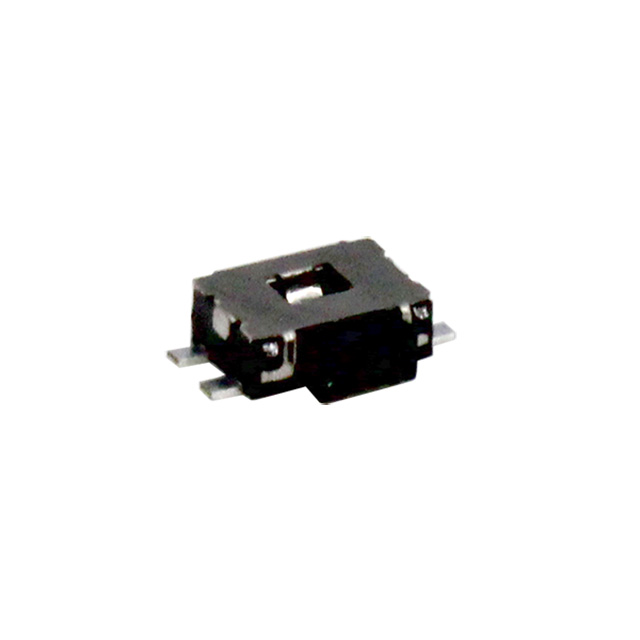

CS1207 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Switch Travel | Actuator Material | Actuator Orientation | Actuator Type | Outline [x] | Outline [y] | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Illumination | Contact Rating @ Voltage | Actuator Length, Right Angle | Switch Function | Mounting Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.3 mm | Polyamide (PA6T) Nylon 6T | Side Actuated | Rectangular Button | 6 mm | 3.5 mm | 160 gf | 85 °C | -40 C | J Lead | Non-Illuminated | 0.05 A 50 VDC | 1.6 mm | Off-Mom | Right Angle Surface Mount | SPST-NO |
CIT Relay and Switch | 0.3 mm | Polyamide (PA6T) Nylon 6T | Side Actuated | Rectangular Button | 6 mm | 3.5 mm | 0.25 kgf | 85 °C | -40 C | J Lead | Non-Illuminated | 0.05 A 50 VDC | 1.6 mm | Off-Mom | Right Angle Surface Mount | SPST-NO |
