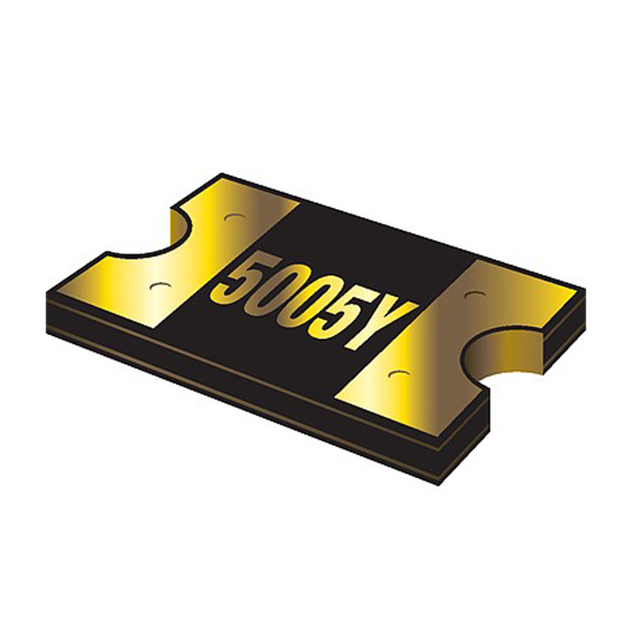

PFMF.075 Series

Catalog

PTC RESET FUSE 13.2V 750MA 1812

Part	Approval Agency	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Time to Trip	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]	Type	Current - Hold (Ih) (Max) [Max]
SCHURTER Inc. PFMF.075.2	cURus TUV	1812 (4532 Metric) Concave	0.11 Ohms	0.2 s	Surface Mount	85 °C	-40 C	0.85 mm	0.033 in	13.2 V	0.179 in	3.24 mm	0.128 "	4.55 mm	1.5 A	450 mOhms	100 A	Polymeric	750 mA
SCHURTER Inc. PFMF.075.24.2	cURus TUV	1812 (4532 Metric) Concave	0.11 Ohms	0.2 s	Surface Mount	85 °C	-40 C	0.85 mm	0.033 in	24 V	0.179 in	3.24 mm	0.128 "	4.55 mm	1.5 A	450 mOhms	40 A	Polymeric	750 mA
