WP908 Series

Catalog

LED GREEN DIFFUSED T-1 T/H

Part	Configuration	Height (Max) [z]	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Millicandela Rating	Lens Style	Lens Transparency	Supplier Device Package	Package / Case	Wavelength - Peak	Viewing Angle	Lens Size	Lens Size	Size / Dimension [diameter]	Color	Wavelength - Dominant	Lens Color

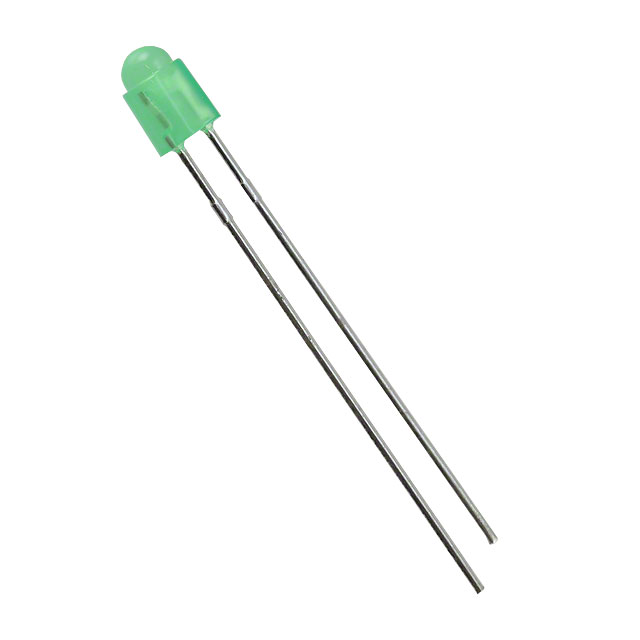

Kingbright WP908A8GD	Standard	5.5 mm	Through Hole	2.2 V	20 mA	25 mcd	Round with Domed Top	Diffused	T-1	Radial	565 nm	80 °	3 mm	T-1	2.9 mm	Green	568 nm	Green

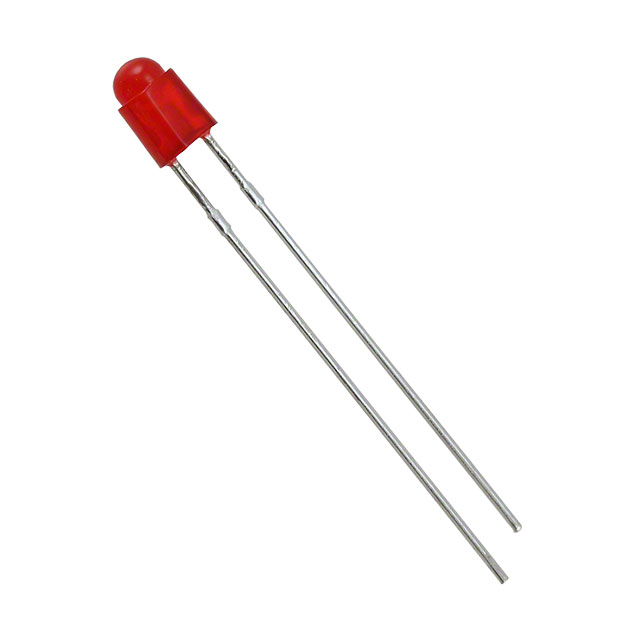

Kingbright WP908A8ID	Standard	5.5 mm	Through Hole	2 V	20 mA	20 mcd	Round with Domed Top	Diffused	T-1	Radial	627 nm	80 °	3 mm	T-1	2.9 mm	Red	625 nm	Red

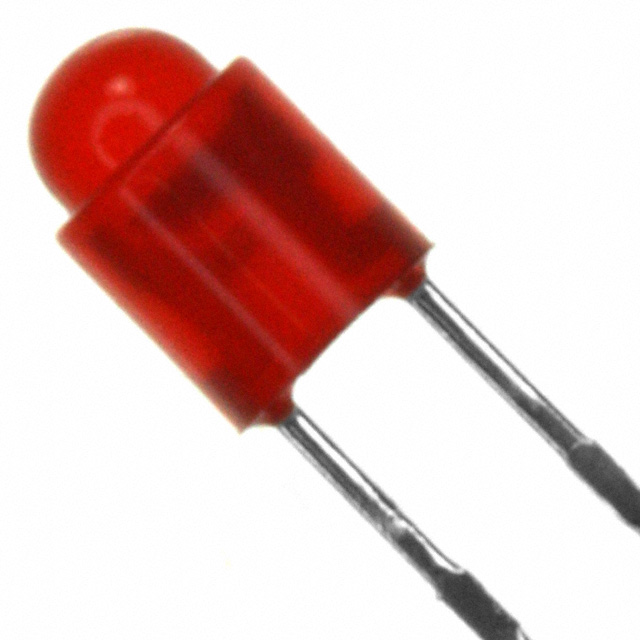

Kingbright WP908A8SRD	Standard	5.5 mm	Through Hole	1.85 V	20 mA	60 mcd	Round with Domed Top	Diffused	T-1	Radial	660 nm	80 °	3 mm	T-1	2.9 mm	Red	640 nm	Red

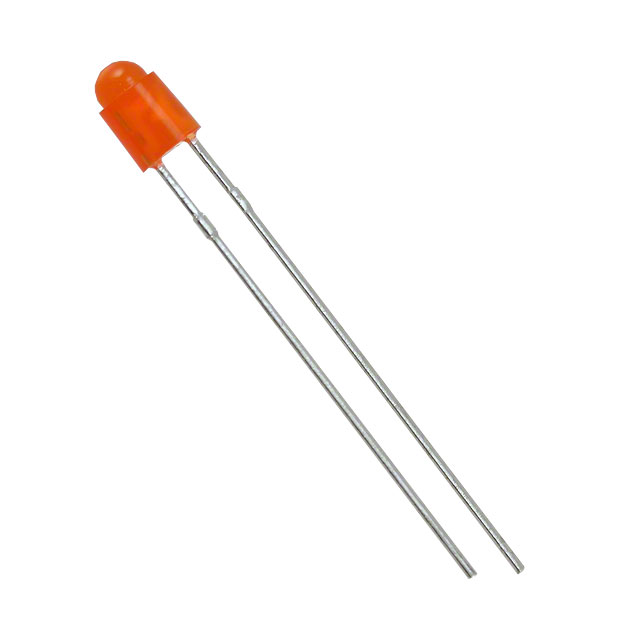

Kingbright WP908A8ND	Standard	5.5 mm	Through Hole	2.05 V	20 mA	10 mcd	Round with Domed Top	Diffused	T-1	Radial	607 nm	80 °	3 mm	T-1	2.9 mm		602 nm	Orange

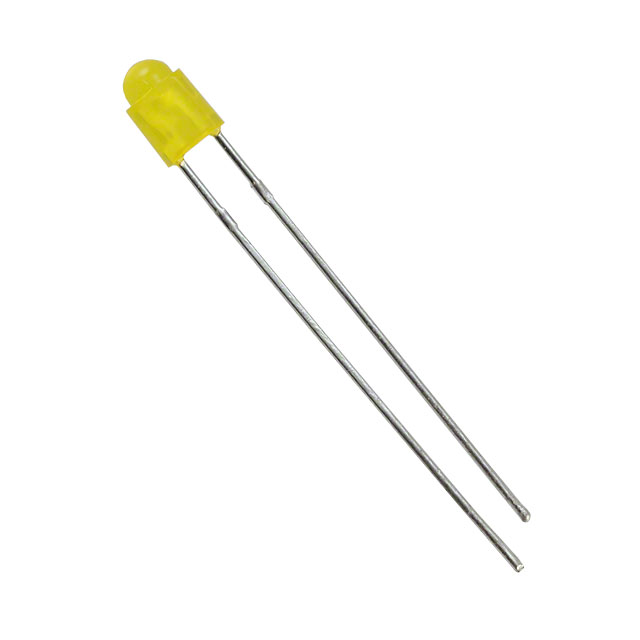

Kingbright WP908A8YD	Standard	5.5 mm	Through Hole	2.1 V	20 mA	20 mcd	Round with Domed Top	Diffused	T-1	Radial	590 nm	80 °	3 mm	T-1	2.9 mm	Yellow	588 nm	Yellow
