AOI1 Series

Catalog

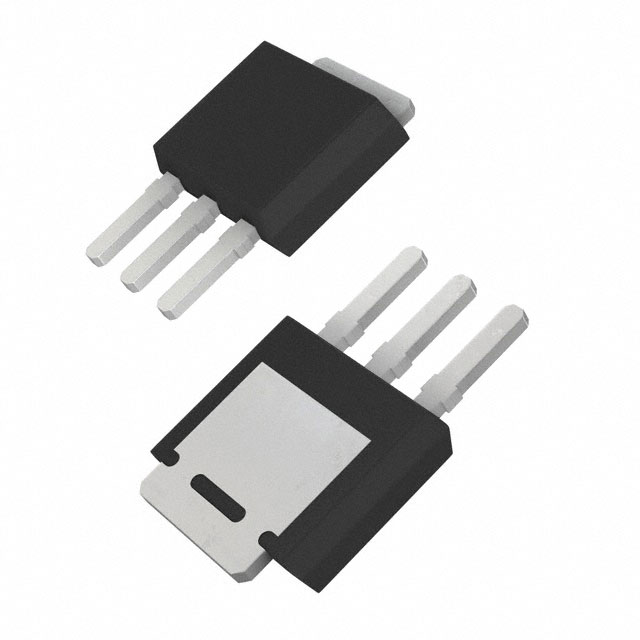

MOSFET N-CH 600V 1.3A TO251A

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Power Dissipation (Max)	Vgs(th) (Max) @ Id	Supplier Device Package	FET Type	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	Vgs (Max)	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type
Alpha & Omega Semiconductor Inc. AOI1N60	8 nC	9 Ohm	45 W	4.5 V	TO-251A	N-Channel	-50 °C	150 °C	MOSFET (Metal Oxide)	1.3 A	10 V	TO-251-3 Stub Leads IPAK	30 V	600 V	160 pF	Through Hole
