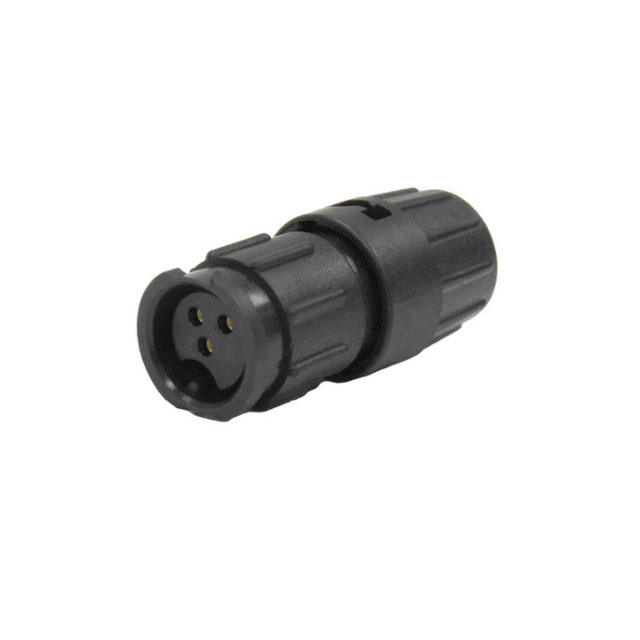

W8282-3 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
MINI-CON-X INSTA-CLICK CONNECTOR
| Part | Orientation | Color | Insert Material | Current Rating (Amps) | Contact Material | Backshell Material, Plating | Features | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Fastening Type | Shell Material | Voltage Rating | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Applications | Ingress Protection | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Keyed | Black | Thermoplastic | Varies by Wire Gauge | Copper Alloy | Thermoplastic | Backshell Coupling Nut UV Resistant | Plug Female Sockets | 85 °C | -40 C | Unshielded | Bayonet Lock | Polybutylene Terephthalate (PBT) | 300 VAC | 4.57 mm | 0.18 " | 0.2 " | 5.08 mm | Automotive Communication Systems Instrumentation | IP66 IP67 IP68 | Gold | Free Hanging (In-Line) |
