M2032TN Series

Catalog

SWITCH ROCKER 3PDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Actuator Marking	Switch Function	Actuator Type	Voltage Rating - AC	Mounting Type	Current Rating (Amps)	Circuit	Termination Style	Features	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap
NKK Switches M2032TNG01	50000 Cycles	50000 Cycles	Varies by Cap	On-On	Actuator Arm Cap Required	28 V	Flange Panel Mount	0.4 VA	3PDT	Solder Lug	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	CSA UL
NKK Switches M2032TNW01-DC	50000 Cycles	25000 Steps	No Marking	On-On	Concave	125 V	Flange Panel Mount	4 A 6 A	3PDT	Solder Lug	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	CSA UL	10.1 mm	17.8 mm	Red
NKK Switches M2032TNW01-FA	50000 Cycles	25000 Steps	No Marking	On-On	Concave	125 V	Flange Panel Mount	4 A 6 A	3PDT	Solder Lug	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	CSA UL	12.4 mm	0.5 in	Black

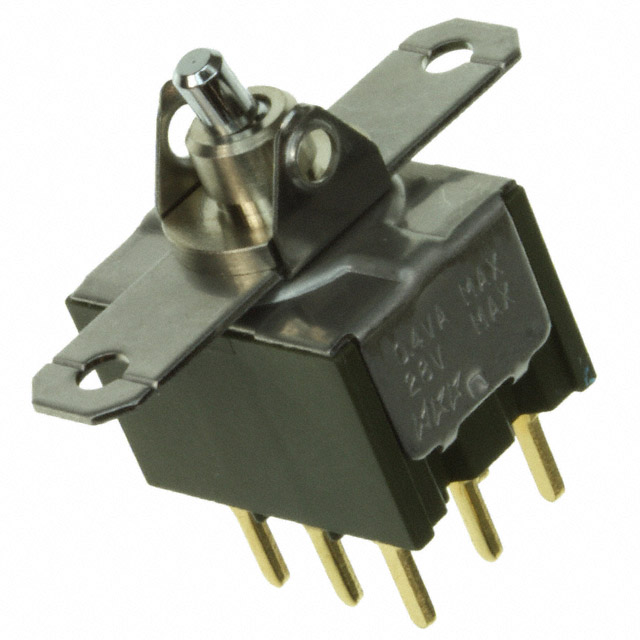

NKK Switches M2032TNG03	50000 Cycles	50000 Cycles	Varies by Cap	On-On	Actuator Arm Cap Required	28 V	Flange Panel Mount	0.4 VA	3PDT	PC Pin	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	CSA UL
NKK Switches M2032TNW01	50000 Cycles	25000 Steps	Varies by Cap	On-On	Actuator Arm Cap Required	125 V	Flange Panel Mount	4 A 6 A	3PDT	Solder Lug	Epoxy Sealed Terminals	30 V	85 °C	-30 ░C	CSA UL
NKK Switches M2032TNG01-FB	50000 Cycles	50000 Cycles	No Marking	On-On	Concave	28 V	Flange Panel Mount	0.4 VA	3PDT	Solder Lug		28 V	85 °C	-30 ░C	CSA UL	12.4 mm	0.5 in	White
NKK Switches M2032TNG01-DA	50000 Cycles	50000 Cycles	No Marking	On-On	Concave	28 V	Flange Panel Mount	0.4 VA	3PDT	Solder Lug	Epoxy Sealed Terminals	28 V	85 °C	-30 ░C	CSA UL	10.1 mm	17.8 mm	Black
