202K121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT SZ21 BLACK

Part	Shell Size - Insert	Type	Total Length Recovered	Total Length Recovered	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Color	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Features	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Material	Small Recovered Length [x]	Small Recovered Length	Small Recovered Length
TE Connectivity Aerospace, Defense and Marine 202K121-100-01/86-0	21	Boot	1.02 in	25.91 mm	23.9 mm	0.941 in	Black	8.89 mm	0.35 in	0.941 "	23.9 mm	Adhesive Coating Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Polyolefin (PO) Semi-Flexible Halogen Free	0.335 "	8.51 mm
TE Connectivity Aerospace, Defense and Marine 202K121-100-CS-2065-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.551 in	14 mm	Fluid Resistant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Polyolefin (PO) Semi-Flexible Halogen Free		13 mm	0.512 in
TE Connectivity Aerospace, Defense and Marine 202K121-3-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.941 "	23.9 mm	Flame Retardant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Polyolefin (PO) Semi-Rigid		13 mm	0.512 in
TE Connectivity Aerospace, Defense and Marine 202K121-100/86-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.551 in	14 mm	Adhesive Coating Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Polyolefin (PO) Semi-Flexible Halogen Free		13 mm	0.512 in
TE Connectivity Aerospace, Defense and Marine 202K121-25-CS-1825-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.941 "	23.9 mm	Fluid Resistant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Elastomer Semi-Rigid		13 mm	0.512 in
TE Connectivity Aerospace, Defense and Marine 202K121-12-00-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.472 in	11.99 mm	Chemical Resistant Lip Potting (Injection) Port	10.39 mm	0.409 in	5.59 mm	0.22 "	Fluoroelastomer (FKM) Flexible		13 mm	0.512 in

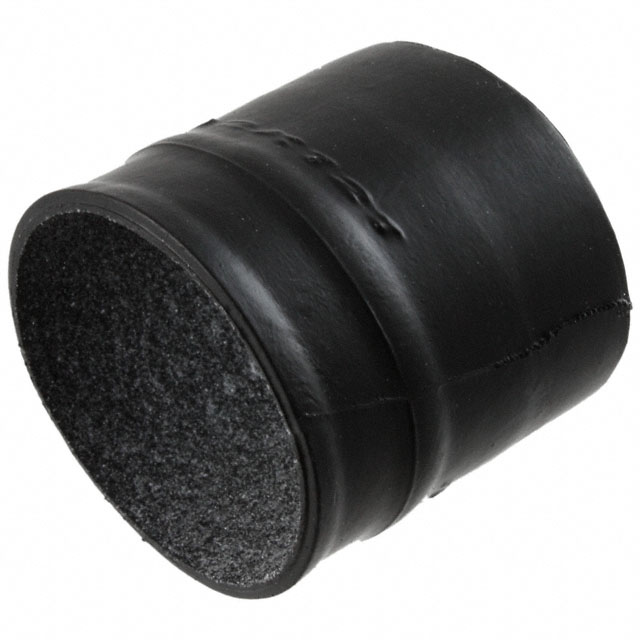

TE Connectivity Aerospace, Defense and Marine 202K121-25/225-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.941 "	23.9 mm	Adhesive Coating Fluid Resistant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Elastomer Semi-Rigid		13 mm	0.512 in
TE Connectivity Aerospace, Defense and Marine 202K121-25/225-0-CS8387	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.941 "	23.9 mm	Adhesive Coating Fluid Resistant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Elastomer Semi-Rigid		13 mm	0.512 in
TE Connectivity Aerospace, Defense and Marine 202K121-25-01/42-0	21	Boot	1.02 in	25.91 mm	23.9 mm	0.941 in	Black	8.89 mm	0.35 in	0.941 "	23.9 mm	Adhesive Coating Fluid Resistant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Elastomer Semi-Rigid	0.335 "	8.51 mm
TE Connectivity Aerospace, Defense and Marine 202K121-12-0	21	Boot			23.9 mm	0.941 in	Black	21.08 mm	0.83 in	0.472 in	11.99 mm	Chemical Resistant Lip	10.39 mm	0.409 in	5.59 mm	0.22 "	Fluoroelastomer (FKM) Flexible		13 mm	0.512 in
