28344 Series
Manufacturer: Phoenix Contact
Beta
⌘K

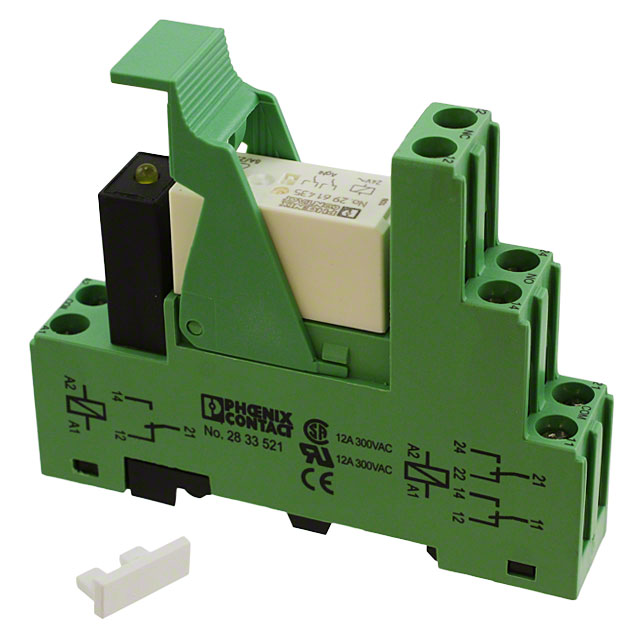

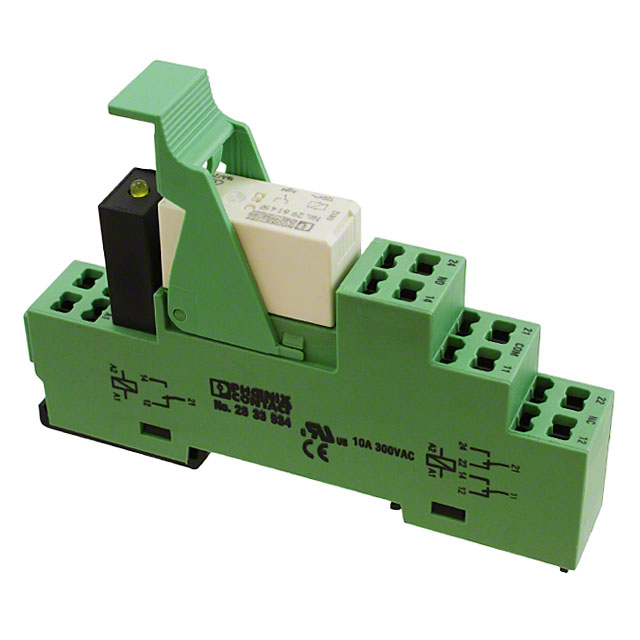

RELAY GEN PURPOSE SPDT 10A 230V
| Part | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Relay Type | Features | Termination Style | Release Time | Switching Voltage [Max] | Contact Rating (Current) | Coil Current | Contact Form | Operate Time | Mounting Type | Coil Voltage | Coil Type | Contact Material | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 41.8 kOhms | -25 °C | 60 °C | General Purpose | Socket Included Varistor | Spring Terminal | 22 ms | 30 VAC 36 VDC | 10 A | 5.5 mA | SPDT (1 Form C) | 12 ms | DIN Rail | 230 VAC | Non Latching | Gold (Au) Silver Nickel (AgNi) | |
 Phoenix Contact | 17.1 kOhms | -25 °C | 60 °C | General Purpose | Lighted Indicator Socket Included Varistor | Spring Terminal | 16 ms | 10 A | 7 mA | SPDT (1 Form C) | 12 ms | DIN Rail | 120 VAC | Non Latching | Silver Nickel (AgNi) | 250 VAC 250 VDC | |
Phoenix Contact | 41.82 kOhms | -25 °C | 60 °C | General Purpose | Lighted Indicator Varistor | Spring Terminal | 22 ms | 10 A | 5.5 mA | SPDT (1 Form C) | 12 ms | DIN Rail | 230 VAC | Non Latching | Silver Nickel (AgNi) | 250 VAC 250 VDC | |
 Phoenix Contact | 923 Ohms | -25 °C | 60 °C | General Purpose | Lighted Indicator Socket Included Varistor | Screw Terminal | 14 ms | 8 A | 26 mA | DPDT (2 Form C) | 12 ms | DIN Rail | 24 VAC | Non Latching | Silver Nickel (AgNi) | 250 VAC 250 VDC | |
 Phoenix Contact | 1263 Ohms | -25 °C | 60 °C | General Purpose | Diode Lighted Indicator Socket Included | Spring Terminal | 10 ms | 10 A | 19 mA | SPDT (1 Form C) | 8 ms | DIN Rail | 24 VDC | Non Latching | Silver Nickel (AgNi) | 250 VAC 250 VDC | |
Phoenix Contact | 17.14 kOhms | -25 °C | 60 °C | General Purpose | Lighted Indicator Varistor | Spring Terminal | 16 ms | 10 A | 7 mA | SPDT (1 Form C) | 12 ms | DIN Rail | 120 VAC | Non Latching | Gold (Au) Silver Nickel (AgNi) | 250 VAC 250 VDC |
