1658071 Series

Catalog

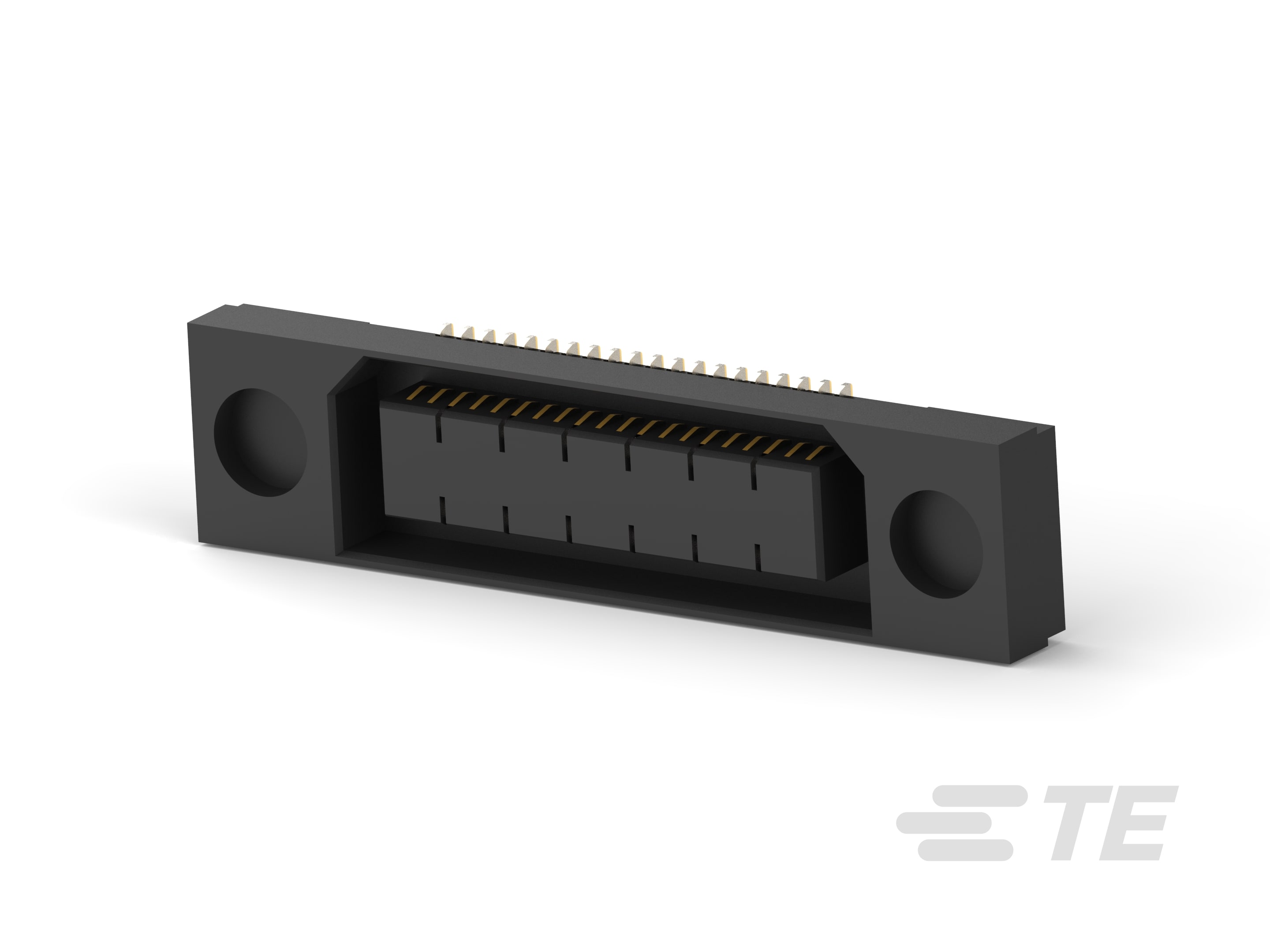

CONN DIFF ARRAY RCP 28P SMD GOLD

Part	Pitch	Pitch	Connector Type	Contact Finish	Number of Rows [custom]	Features	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Finish Thickness	Number of Positions	Number of Positions [custom]
TE Connectivity AMP Connectors 3-1658071-1	0.8 mm	0.031 in	Differential Pair Array Female	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash	28
TE Connectivity AMP Connectors 7-1658071-1	0.8 mm	0.031 in	Differential Pair Array Female	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash	28
TE Connectivity AMP Connectors 1658071-1	0.8 mm	0.031 in	Receptacle Center Strip Contacts	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash	40
TE Connectivity AMP Connectors 1-1658071-3	0.8 mm	0.031 in	Differential Pair Array Female	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash		84
TE Connectivity AMP Connectors 3-1658071-2	0.8 mm	0.031 in	Differential Pair Array Female	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash	56
TE Connectivity AMP Connectors 3-1658071-3	0.8 mm	0.031 in	Differential Pair Array Female	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash		84
TE Connectivity AMP Connectors 3-1658071-4	0.8 mm	0.031 in	Differential Pair Array Female	Gold	2	Board Guide Ground Bus (Plane)	0.12 in	3.05 mm	Surface Mount	Flash	112
