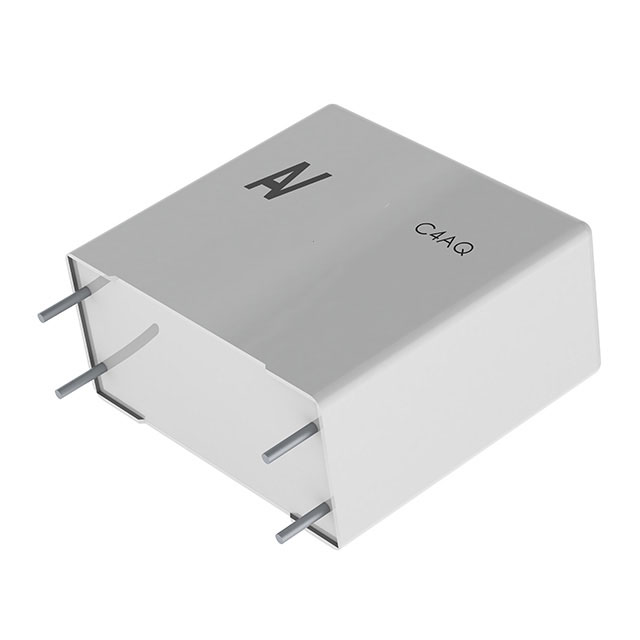

C4AQCB Series

Manufacturer: KEMET

Catalog

CAP FILM 30UF 5% 650VDC RADIAL

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Package / Case	Capacitance	Dielectric Material	Applications	Termination	Lead Spacing	Lead Spacing	Ratings	ESR (Equivalent Series Resistance)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET C4AQCBW5300A3JJ	650 V	-40 C	105 ░C	28 mm	1.654 in	42 mm	1.102 "	5 %	Radial - 4 Leads	30 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	37.5 mm	1.476 in	AEC-Q200	3.6 mOhms	Through Hole	1.465 in	37.2 mm
KEMET C4AQCBU4330A1WJ	650 V	-40 C	105 ░C					5 %	Radial	3.3 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	27.5 mm	1.083 in	AEC-Q200	17 mOhm	Through Hole			0.795 in	20.2 mm
KEMET C4AQCBU5150A12J	650 V	-40 C	105 ░C	22 mm	1.24 in	31.5 mm	0.866 in	5 %	Radial	15 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	27.5 mm	1.083 in	AEC-Q200	5.3 mOhms	Through Hole	1.465 in	37.2 mm
KEMET C4AQCBW5750A3NJ	650 V	-40 C	105 ░C	1.378 in		2.264 in		5 %	Radial - 4 Leads	75 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	52.5 mm	2.067 in	AEC-Q200	3.1 mOhms	Through Hole					57.5 mm	35 mm
KEMET C4AQCBW5500A3OJ	650 V	-40 C	105 ░C	35 mm	1.654 in	42 mm	1.378 in	5 %	Radial - 4 Leads	50 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	37.5 mm	1.476 in	AEC-Q200	2 mOhms	Through Hole			1.976 "				50.2 mm
KEMET C4AQCBW5550A3MJ	650 V	-40 C	105 ░C	30 mm	2.264 in	57.5 mm	1.181 in	5 %	Radial - 4 Leads	55 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	52.5 mm	2.067 in	AEC-Q200	4.1 mOhms	Through Hole				1.783 in				45.3 mm
KEMET C4AQCBW5400A3LJ	650 V	-40 C	105 ░C	30 mm	1.654 in	42 mm	1.181 in	5 %	Radial - 4 Leads	40 µF	Polypropylene (PP) Metallized	Automotive DC Filtering DC Link	PC Pins	37.5 mm	1.476 in	AEC-Q200	2.8 mOhms	Through Hole
