AOB190 Series

Catalog

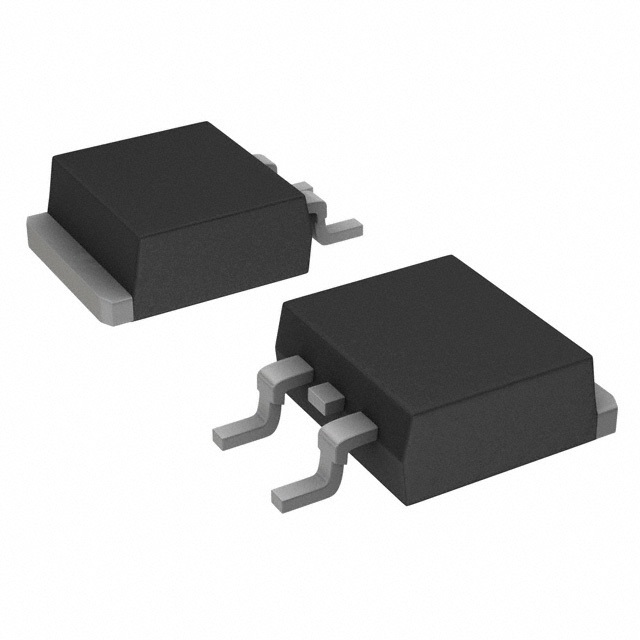

MOSFET N-CH 600V 20A TO263

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Technology	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Current - Continuous Drain (Id) @ 25°C	FET Type	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id
Alpha & Omega Semiconductor Inc. AOB190A60CL	150 °C	-55 °C	TO-263 (D2PAK)	208 W	190 mOhm	MOSFET (Metal Oxide)	30 V	10 V	Surface Mount	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	34 nC	1935 pF	20 A	N-Channel	600 V	4.6 V
