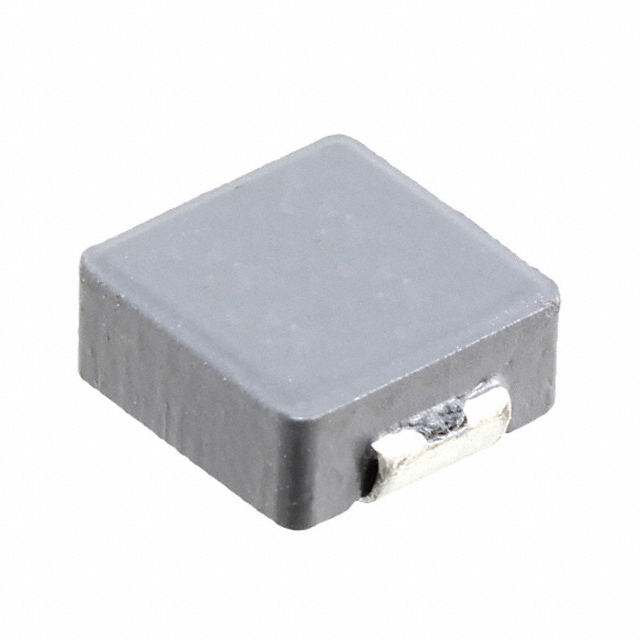

SRP7028A Series
Manufacturer: Bourns Inc.
Beta
⌘K
POWER INDUCTOR (SMD), 1.8 ΜH, 8.5 A, SHIELDED, 16 A, SRP7028A SERIES
| Part | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Current Rating (Amps) | Q @ Freq | Frequency - Self Resonant | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Material - Core | Current - Saturation (Isat) | Package / Case | Inductance Frequency - Test | Shielding | Ratings | Type | DC Resistance (DCR) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1.8 µH | -40 C | 150 °C | 20 % | 8.5 A | 20 100 kHz | 36 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 16 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 17 mOhm | |
Bourns Inc. | 100 nH | -40 C | 150 °C | 20 % | 32.5 A | 5 100 kHz | 300 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 60 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 1.7 mOhm | |
 Bourns Inc. | 8.2 µH | -40 C | 150 °C | 20 % | 4 A | 20 100 kHz | 17 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 7.5 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 68 mOhm | |
 Bourns Inc. | 22 µH | -40 C | 150 °C | 20 % | 2 A | 20 100 kHz | 10 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 3.5 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 190 mOhm | |
Bourns Inc. | 2.5 µH | -40 C | 150 °C | 20 % | 7 A | 20 100 kHz | 30 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 13 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | ||
 Bourns Inc. | 330 nH | -40 C | 150 °C | 20 % | 20 A | 10 100 kHz | 140 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 32 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 3.9 mOhm | |
Bourns Inc. | 1 µH | -40 C | 150 °C | 20 % | 11 A | 20 100 kHz | 58 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 22 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 10 mOhm | |
Bourns Inc. | 470 nH | -40 C | 150 °C | 20 % | 17.5 A | 10 100 kHz | 80 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 26 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 4.2 mOhm | |
Bourns Inc. | 220 nH | -40 C | 150 °C | 30 % | 23 A | 5 100 kHz | 150 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 40 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound | 2.8 mOhm | |
Bourns Inc. | 6.8 µH | -40 C | 150 °C | 20 % | 4.5 A | 20 100 kHz | 18 MHz | Surface Mount | 6.6 mm | 0.287 " | 0.26 in | 7.3 mm | 0.118 " | 3 mm | Carbonyl Powder | 8 A | Nonstandard | 100 kHz | Shielded | AEC-Q200 | Drum Core Wirewound |
