PX0757 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

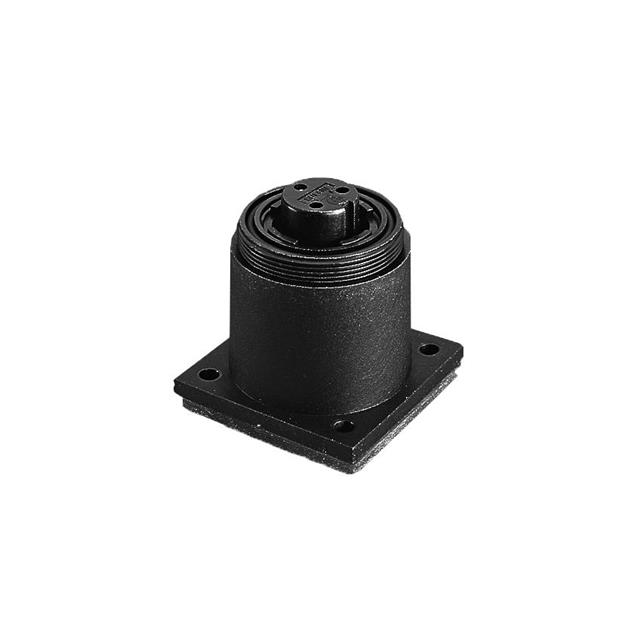

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, RECEPTACLE, 2, SOCKET, SCREW, PANEL MOUNT ROHS COMPLIANT: YES
| Part | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Shell Material | Number of Positions | Mounting Type | Connector Type | Orientation | Material Flammability Rating | Shielding | Color | Insert Material [custom] | Insert Material [custom] | Contact Material | Primary Material | Mounting Feature | Contact Finish - Mating | Termination | Ingress Protection | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Threaded | -20 ░C | 70 °C | 277 VAC | Glass Filled Nylon Polyamide (PA) | 2 | Panel Mount | Receptacle Female Sockets | Keyed | UL94 HB | Unshielded | Black | Nylon | Polyamide (PA) | Brass | Plastic | Flange | Nickel | Screw | IP68 IP69K | 12 Amps |
 BULGIN LIMITED | Threaded | -20 ░C | 70 °C | 277 VAC | Glass Filled Nylon Polyamide (PA) | 2 | Panel Mount | Receptacle Male Pins | Keyed | UL94 HB | Unshielded | Black | Nylon | Polyamide (PA) | Brass | Plastic | Flange | Nickel | Screw | IP68 IP69K | 12 Amps |
