Q5-3X-1/8 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 0.12" X 656.2' BLACK

Part	Features	Type	Shelf Life	Inner Diameter - Recovered	Inner Diameter - Recovered	Material	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Color	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio	Operating Temperature [Min]	Operating Temperature [Max]	Length

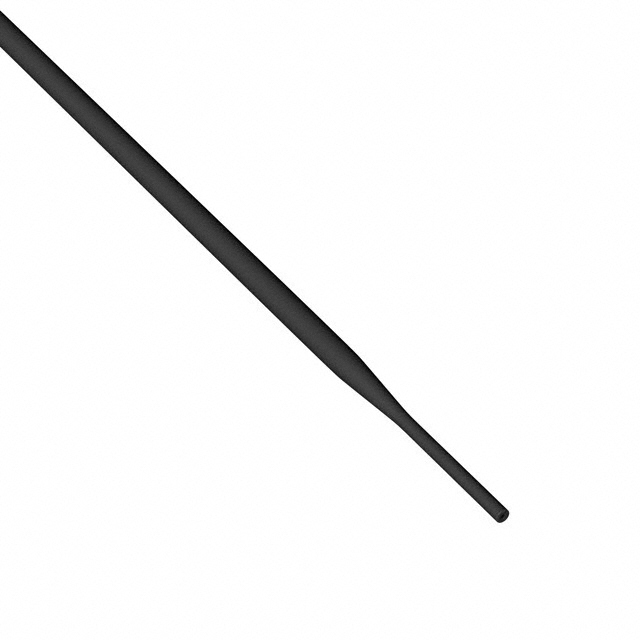

Qualtek Q5-3X-1/8-01-SS200M	Adhesive Lined Flame Retardant	Tubing Flexible	60 Months	0.039 in	0.99 mm	Polyolefin (PO)	40 °C	14 °F	-50 °F	40 °C	3.05 mm	0.12 "	656.2 ft	200 m	Black	80 °C	0.99 mm	0.039 in	3 to 1	-55 C	125 °C
Qualtek Q5-3X-1/8-01-QB6IN-28	Adhesive Lined Flame Retardant	Tubing Flexible	60 Months	0.039 in	0.99 mm	Polyolefin (PO)	40 °C	14 °F	-50 °F	40 °C	3.05 mm	0.12 "	0.5 '	152.4 mm	Black	80 °C	0.99 mm	0.039 in	3 to 1	-55 C	125 °C	6 "
