1105-7521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

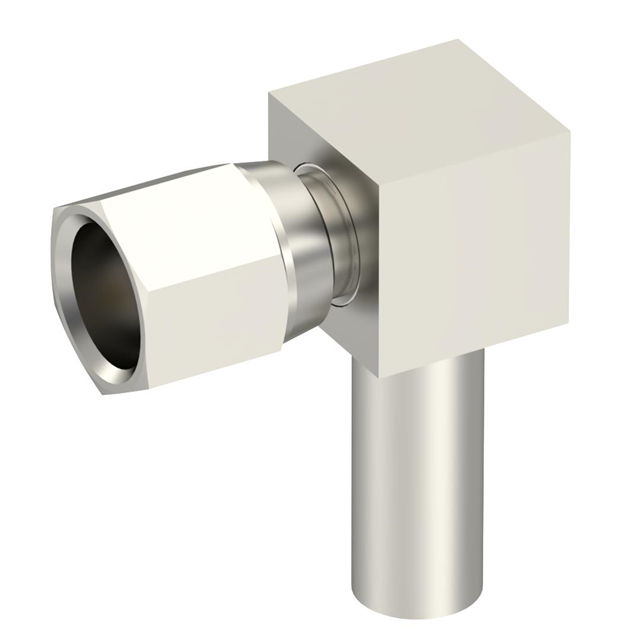

SMC F RA NA CR 2.6/50S
| Part | Voltage Rating | Mating Cycles | Center Contact Plating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Material | Mounting Type | Center Contact Material | Frequency - Max [Max] | Housing Color | Contact Termination | Connector Style | Shield Termination | Impedance | Number of Ports | Connector Type | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | 500 | Gold | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | 0.5 dB | Brass | Free Hanging (In-Line) Right Angle | Beryllium Copper | 10 GHz | Gold | Crimp | SMC | Crimp | 50 Ohms | 1 | Female Socket Plug | Threaded | RG-174 RG-179 RG-316 |
