SLW20 Series

Catalog

CONN FFC FPC VERT 20POS 1MM PCB

Part	Housing Color	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Locking Feature	Housing Material	Material Flammability Rating	Actuator Material	Flat Flex Type	Contact Finish	Mounting Type	Number of Positions	Connector/Contact Type	Contact Material	FFC, FCB Thickness	Actuator Color	Cable End Type

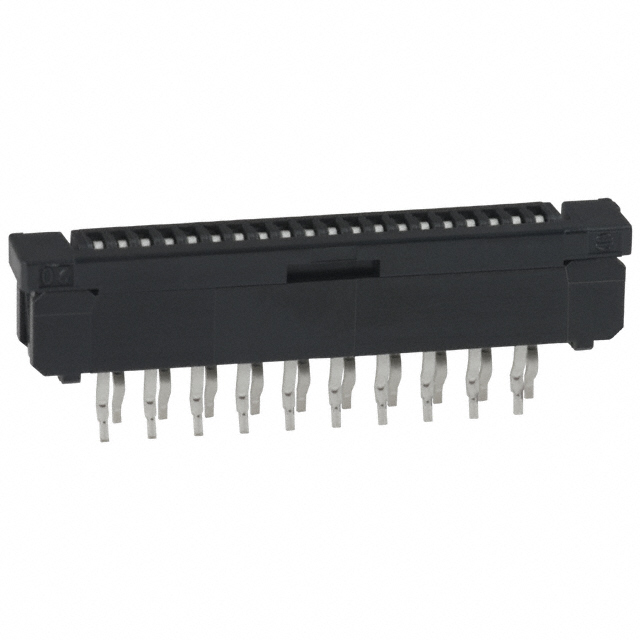

Amphenol ICC (FCI) SLW20S-1C7LF	Black	20	-55 C	85 °C	Kinked Pin	1 mm	0.039 in	0.217 in	5.5 mm	100 V	Slide Lock	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Glass Filled Nylon Polyamide (PA)	FFC FPC	Tin	Through Hole	20	Contacts Vertical - 1 Sided	Phosphor Bronze	0.33 mm
Amphenol ICC (FCI) SLW20R-1C7ALF	Black	20	-55 C	85 °C	Kinked Pin	1 mm	0.039 in	0.157 in	4 mm	100 V	Slide Lock	Glass Filled Nylon Polyamide (PA)	UL94 V-0	Glass Filled Nylon Polyamide (PA)	FPC	Gold	Right Angle Through Hole	20	Contacts Bottom	Phosphor Bronze	0.33 mm	Black	Tapered
