895-026 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 26POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Mounting Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Material	Contact Type	Pitch	Pitch	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Number of Positions/Bay/Row	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Number of Positions	Features	Termination Rows	Number of Rows

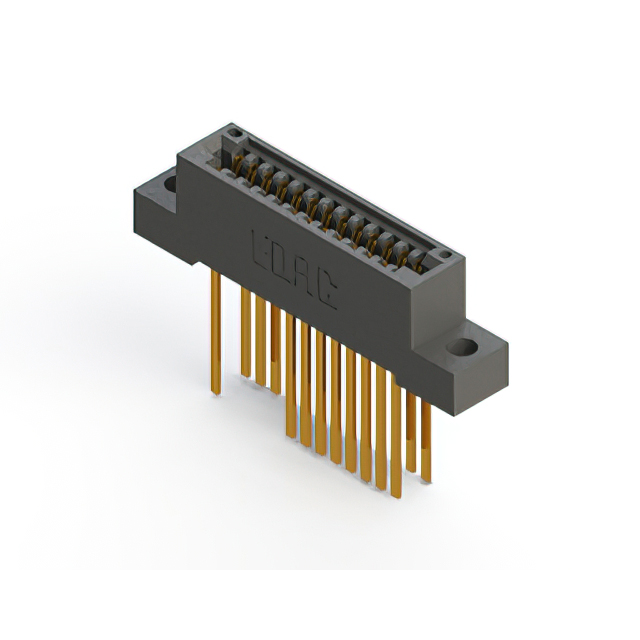

EDAC Inc. 895-026-544-204	2	Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Wire Wrap	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26

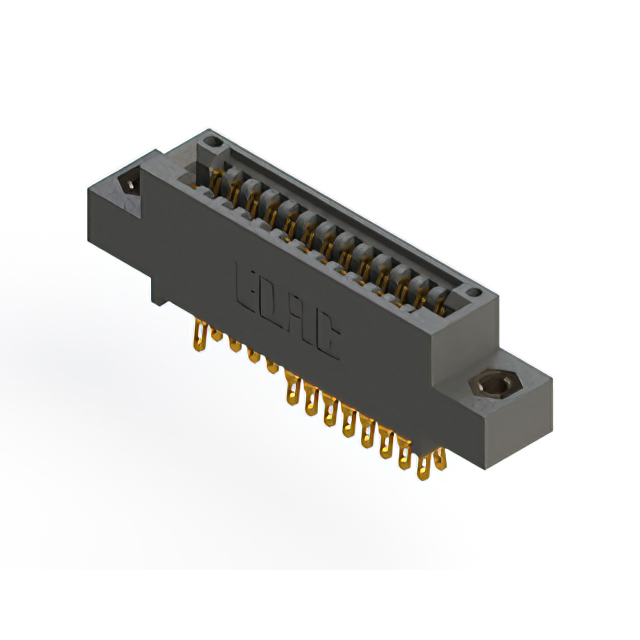

EDAC Inc. 895-026-555-507	2	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Black	125 °C	-40 C	Solder	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening			Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26	Card Extender

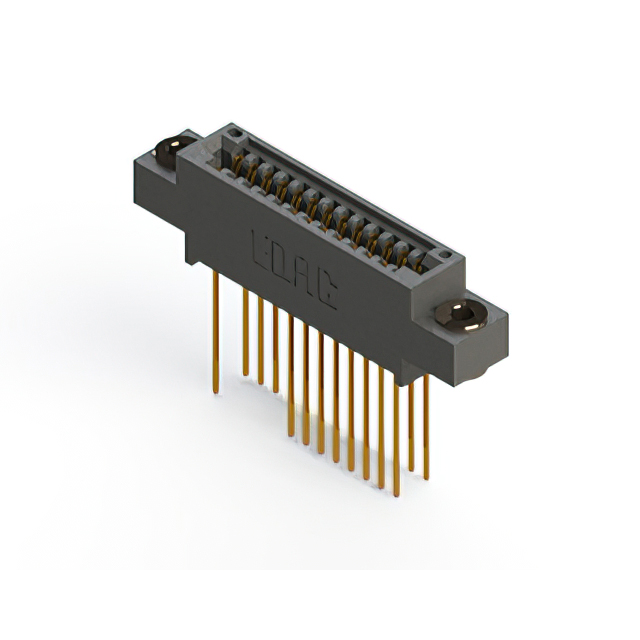

EDAC Inc. 895-026-541-803	2	Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Wire Wrap	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26

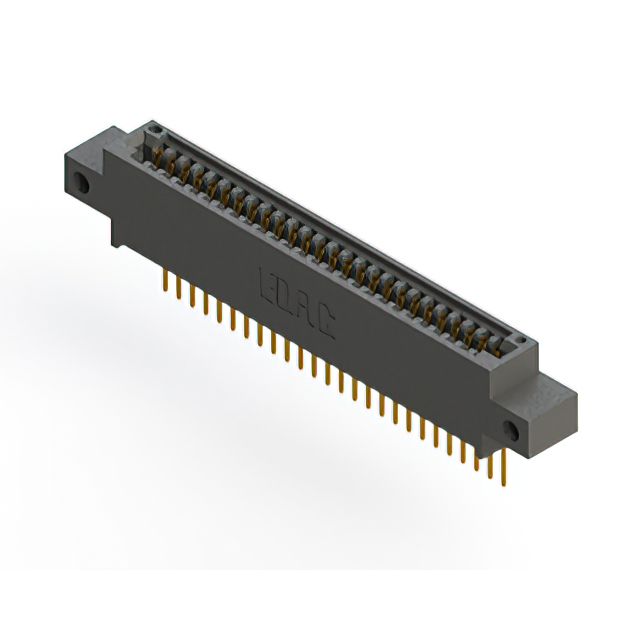

EDAC Inc. 895-026-523-612		Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Solder	Copper Alloy	Cantilever	0.1 "	2.54 mm		0.07 in 1.78 mm	0.054 in 1.37 mm	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Gold	26	Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	26		1	1

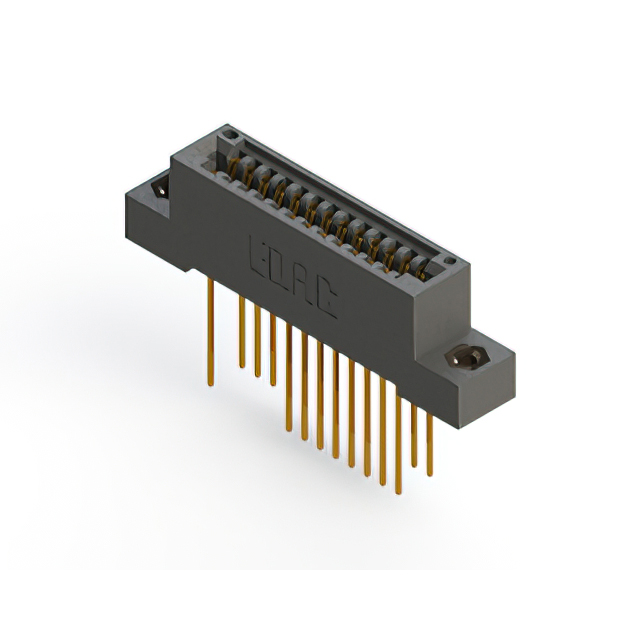

EDAC Inc. 895-026-542-208	2	Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Wire Wrap	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening			Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26

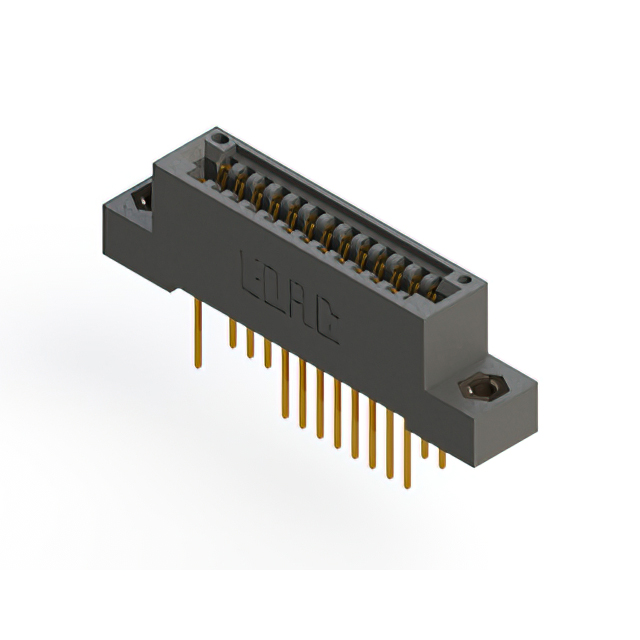

EDAC Inc. 895-026-523-207	2	Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Solder	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening			Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26

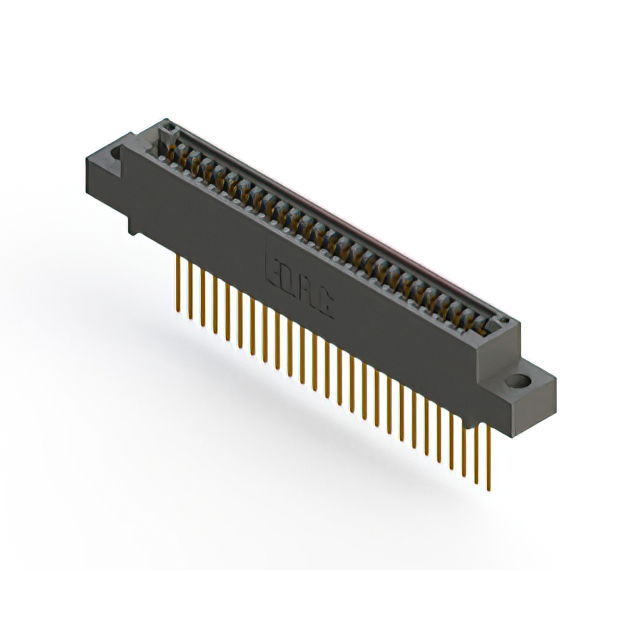

EDAC Inc. 895-026-542-404		Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Wire Wrap	Copper Alloy	Cantilever	0.1 "	2.54 mm		0.07 in 1.78 mm	0.054 in 1.37 mm		0.156 "	3.96 mm	Gold	26	Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	26		1	1

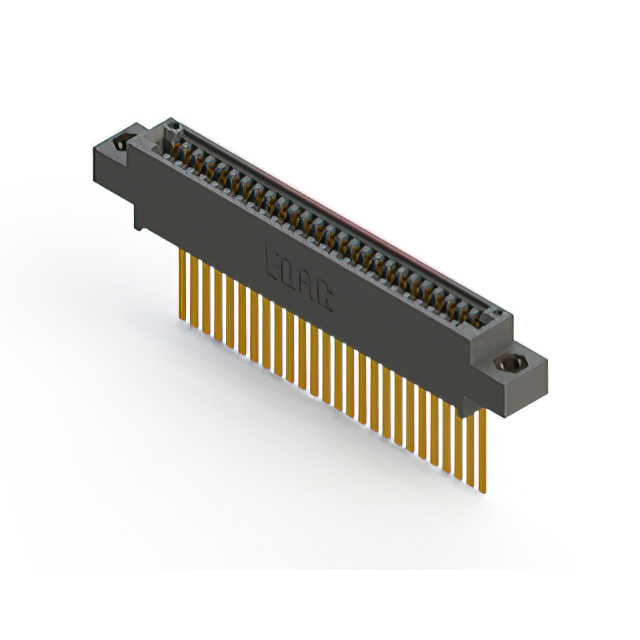

EDAC Inc. 895-026-544-607		Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Wire Wrap	Copper Alloy	Cantilever	0.1 "	2.54 mm		0.07 in 1.78 mm	0.054 in 1.37 mm	M3 Threaded Insert Top Mount Opening			Gold	26	Female	0.25 Ám	10 Áin	Non Specified - Single Edge	Single	26		1	1

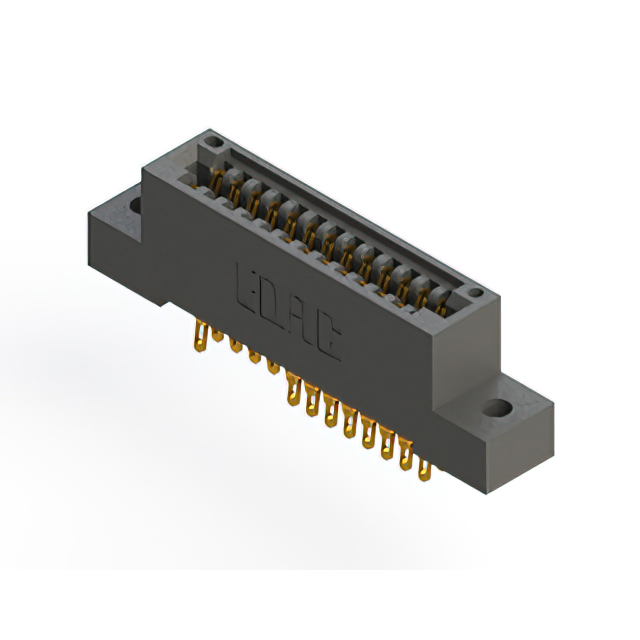

EDAC Inc. 895-026-555-202	2	Polyphenylene Sulfide (PPS)	Board Edge Straddle Mount	Black	125 °C	-40 C	Solder	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26	Card Extender
EDAC Inc. 895-026-542-508	2	Polyphenylene Sulfide (PPS)	Through Hole	Black	125 °C	-40 C	Wire Wrap	Copper Alloy	Cantilever	0.1 "	2.54 mm	2	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening			Gold	13	Female	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	26
