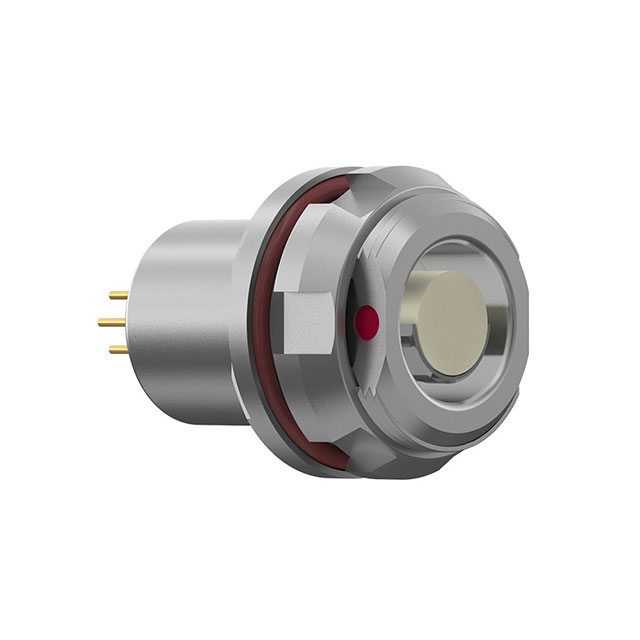

G80F1C-P Series
Manufacturer: ODU
Beta
⌘K

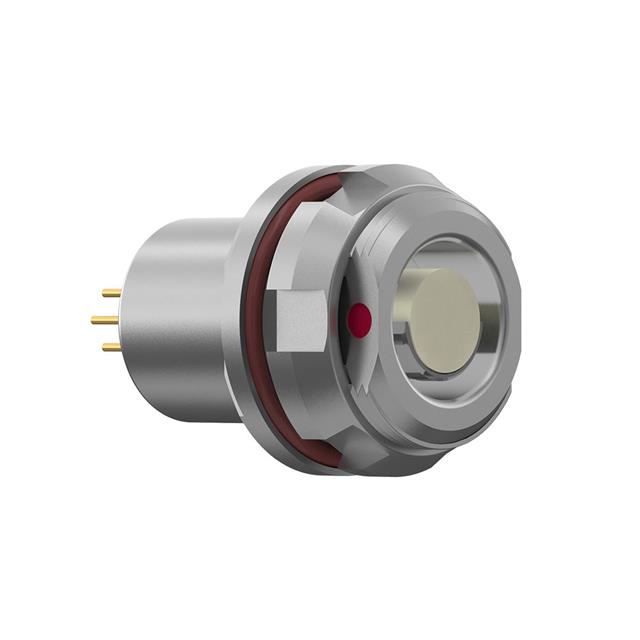

ODU MINI-SNAP RECEPT, STY 8, SZ
| Part | Shell Material | Orientation [custom] | Material Flammability Rating | Insert Material | Number of Positions | Shell Size - Insert [custom] | Contact Material | Connector Type | Mounting Type | Primary Material | Applications | Current Rating (Amps) | Color | Shell Finish | Mounting Feature | Ingress Protection | Voltage Rating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 7 | 0 | Brass | Receptacle Female Sockets | Panel Mount | Metal | Industrial Medical Military Testing Equipment & Measurement | 4 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 300 VDC | Push-Pull | 120 °C | -40 C | Unshielded | Gold | ||
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 7 | 0 | Brass | Receptacle Female Sockets | Panel Mount Through Hole | Metal | Industrial Medical Military Testing Equipment & Measurement | 4 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 300 VDC | Push-Pull | 120 °C | -40 C | Unshielded | Gold | Solder | |
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 9 | 0 | Brass | Receptacle Female Sockets | Panel Mount | Metal | Industrial Medical Military Testing Equipment & Measurement | 4 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | Push-Pull | 120 °C | -40 C | Gold | ||||
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 4 | 0 | Brass | Receptacle Female Sockets | Panel Mount Through Hole | Metal | Industrial Medical Military Testing Equipment & Measurement | 6 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 300 VDC | Push-Pull | 120 °C | -40 C | Unshielded | Gold | Solder | |
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 2 | 0 | Brass | Receptacle Female Sockets | Panel Mount | Metal | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 500 V | Push-Pull | 120 °C | -40 C | Unshielded | Gold | ||
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 7 | 0 | Brass | Receptacle Female Sockets | Panel Mount | Metal | Industrial Medical Military Testing Equipment & Measurement | 4 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | Push-Pull | 120 °C | -40 C | Gold | ||||
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 5 | 0 | Brass | Receptacle Female Sockets | Panel Mount | Metal | Industrial Medical Military Testing Equipment & Measurement | 7.5 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | Push-Pull | 120 °C | -40 C | Gold | ||||
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 5 | 0 | Brass | Receptacle Female Sockets | Panel Mount Through Hole | Metal | Industrial Medical Military Testing Equipment & Measurement | 6 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 366 V | Push-Pull | 120 °C | -40 C | Unshielded | Gold | Solder | |
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 7 | 0 | Brass | Receptacle Female Sockets | Panel Mount Through Hole | Metal | Industrial Medical Military Testing Equipment & Measurement | 4 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 300 VDC | Push-Pull | 120 °C | -40 C | Unshielded | Gold | Solder | |
Brass | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 7 | 0 | Brass | Receptacle Female Sockets | Panel Mount Through Hole | Metal | Industrial Medical Military Testing Equipment & Measurement | 4 A | Silver | Chrome over Nickel | Bulkhead - Front Side Nut | IP68 - Dust Tight Waterproof | 300 VDC | Push-Pull | 120 °C | -40 C | Unshielded | Gold | Solder |
