1437538 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

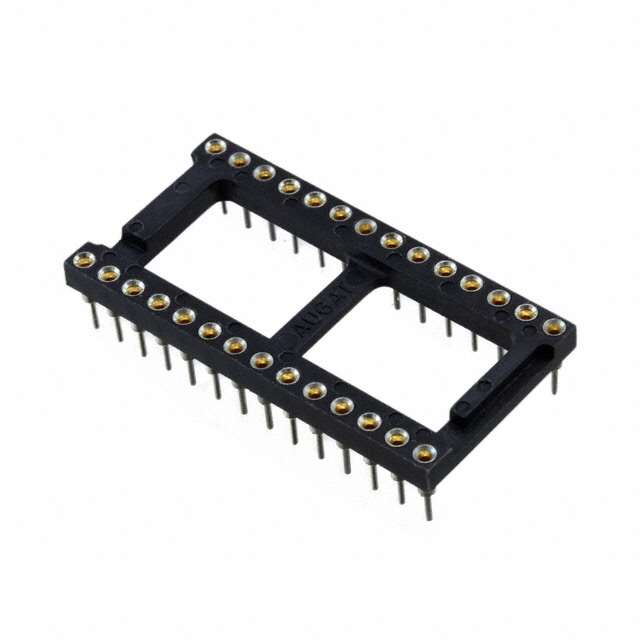

CONN IC DIP SOCKET 28POS TIN
| Part | Termination Post Length | Termination Post Length | Current Rating (Amps) | Material Flammability Rating | Contact Resistance | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Termination | Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) | Housing Material | Contact Material - Mating | Type [custom] | Type [custom] | Type | Contact Finish - Mating | Contact Material - Post [custom] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 3 A | UL94 V-0 | 10 mOhm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Solder | Open Frame | Surface Mount | -55 C | 105 ░C | 28 | Polyester | Copper Alloy | 15.24 mm | 0.6 in | DIP | |||
TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 3 A | UL94 V-0 | 10 mOhm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Solder | Open Frame | Through Hole | -55 C | 105 ░C | 40 | Polyester | Copper Alloy | 15.24 mm | 0.6 in | DIP | Tin-Lead | ||
 TE Connectivity AMP Connectors | 0.125 in | 3.18 mm | 3 A | UL94 V-0 | 10 mOhm | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Solder | Open Frame | Through Hole | -55 C | 105 ░C | 28 | Polyester | Copper Alloy | 15.24 mm | 0.6 in | DIP | Tin-Lead | Copper Alloy | Tin-Lead |
