FIT0489 Series
Manufacturer: DFRobot
Beta
⌘K

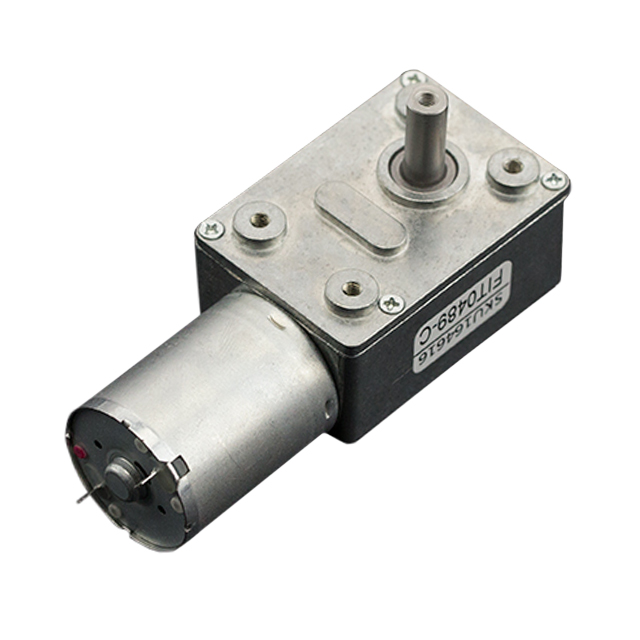

DC GEARED MOTOR, BRUSHED, 150:1, 12V ROHS COMPLIANT: YES
| Part | Weight [custom] | Weight [custom] | Power - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Gear Reduction Ratio | Termination Style | RPM | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Voltage - Rated | Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DFRobot | 0.364 lb | 165.11 g | 1.1 W | 6 mm | 0.236 in | 150 | Solder Tab | 40 RPM | 18.5 mm | 0.728 in | 12 VDC | DC Motor | 30.55 oz-in | 215.8 mNm | ||
 DFRobot | 6 mm | 0.236 in | 150 | Solder Tab | 40 RPM | 18.5 mm | 0.728 in | 6 VDC | DC Motor | 34.72 oz-in | 245.2 mNm | 0.35 lb | 160 g | |||
 DFRobot | 0.364 lb | 165.11 g | 1.1 W | 6 mm | 0.236 in | 37.3 | Solder Tab | 160 RPM | 18.5 mm | 0.728 in | 12 VDC | DC Motor | 7.64 oz-in | 53.94 mNm |
